High-Speed FPC Y-Flex

High-Speed FPC Y-Flex

High-Speed FPC Y-Flex

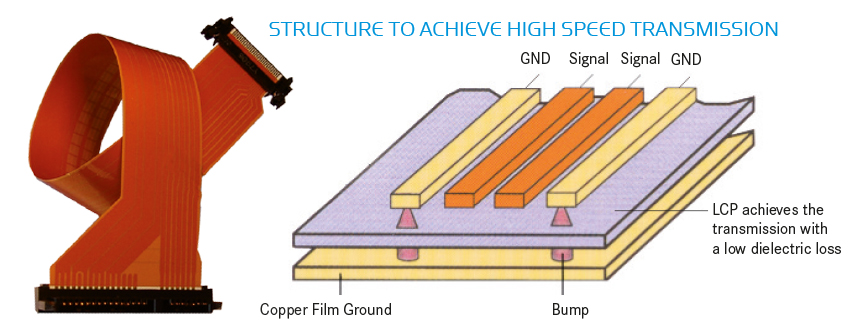

Y-Flex is a special High Speed FPC (Flexible Printed Circuit) which is able to transmit up to 20Gbps with differential Impedance of 100Ohm. This high performance is given by different features, like LCP as base material, the contacting of different layers done by silver bumps and the special production process.
This makes the Y-Flex to the best partner for our High-Speed Connector series like HF513, HF509, HF601 and HF507. Each Y-Flex will be designed based on the customer’s specific requirements, so that all parameters like pinning, number of layers and routing can be done individually.

Advantages

  • Available to transmit High-Speed in Gbps with low loss
  • Effective to use at harshest temperature, humidity and EMI condition
  • Customized depending on the layout and requirement
