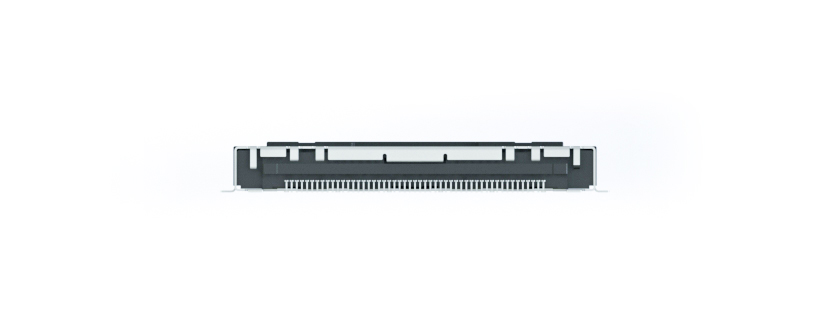

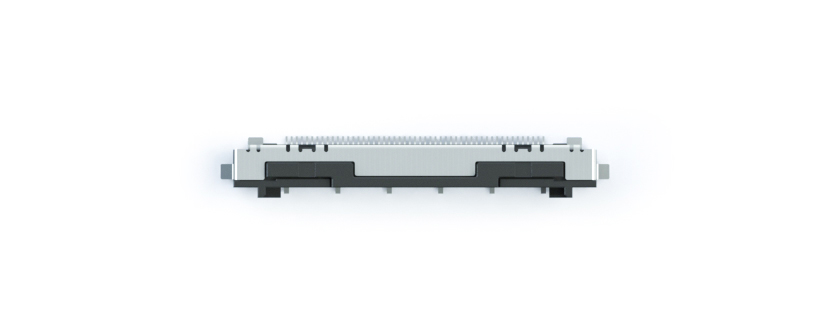

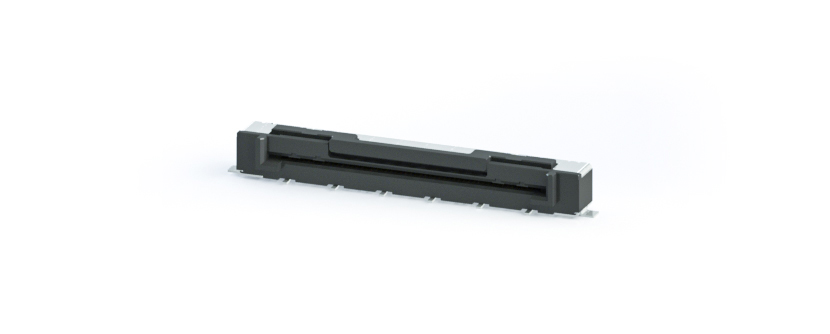

High Speed Non-ZIF - HF507S - 0.5 pitch - 51pins - 90°- direct mating type

Features

  • HF507S-51-72
  • High Speed connector with up to 5 Gbps transfer rate
  • 100 Ohm Differential Impedance
  • To be used with High Speed FFC without stiffener (direct mating over FFC shape)
  • Releasing of cable over connector spring
  • For LVDS application, S-ATA, HDMI etc.
Dimensioned drawing 3D Model
Request Product

Advantages

  • HF507 Series for LVDS applications with 21, 31, 41 and 51 pins
  • HF509 Series for IEEE applications with 10 pins
  • HF513 Series, the smallest and fastest connector with 30, 40 and 50 pins

Specifications

General Specification
  • Mating Cycles
    30
  • Operating Temperature Range
    -20 °C – 85 °C
  • Plating type, technology and coating thickness
    Contacts and Terminal: Phosphor Bronze, (t = 0.15mm) Ni-Au plating
  • Packaging
    Tape and Reel
  • Product Compliance
    Reach, RoHS
Electrical Specification
  • (Initial) Contact Resistance
    100 Milliohm
  • Insulation Resistance
    100 Megaohm
  • Voltage Rating
    50 V AC
Interface Specification
  • Pin Count / Numbers of pins
    51
