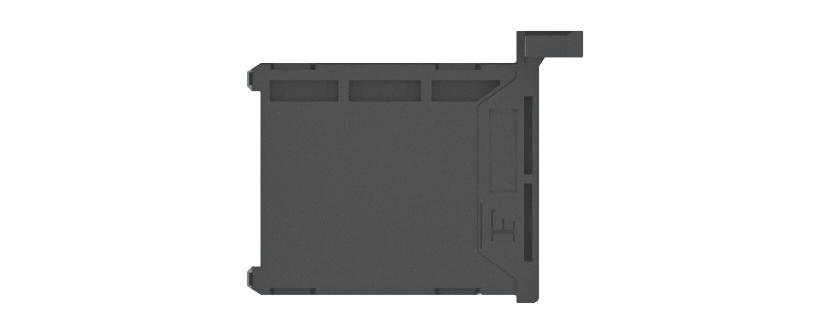

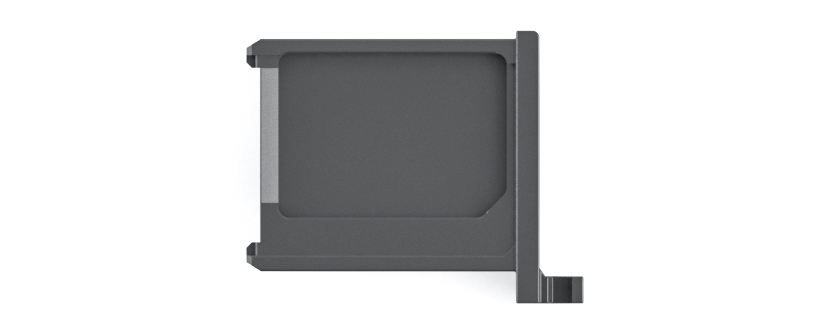

Nano SIM Card Tray

Features

  • FUA006-3220-0
  • Tray for FUS006-3210-0
  • Tray for Nano-Sim cards

Advantages

  • Yamaichi Electronics offers the right SIM card connector for all common card formats
  • Various unlocking techniques such as push/pull or tray type
  • Mounting version for top and bottom of the PCB

Specifications

General Specification
  • Mating Cycles
    5,000
  • Operating Temperature Range
    -25 °C – 85 °C
  • Plating type, technology and coating thickness
    Contact : Copper Alloy,
    t = 0.12, Ni-Au
  • Product Compliance
    Reach, RoHS
Electrical Specification
  • (Initial) Contact Resistance
    100 Milliohm at 1 mA
  • Insulation Resistance
    500 Megaohm
  • (Dieletric) Withstanding Voltage
    500 pin to shield / ground for 1 minute pin to pin
  • Voltage Rating
    5 V AC rms
