- FPS009-2305-0
- Top mount version
- With card detection switch
- Two point contact design
- With write protection
- Soldering terminals in the inner connector area
EN

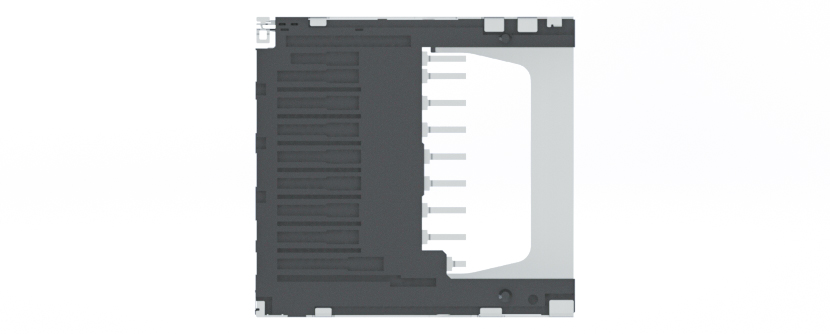

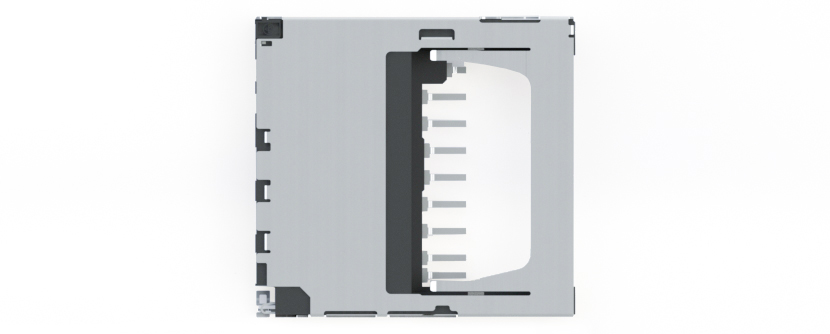

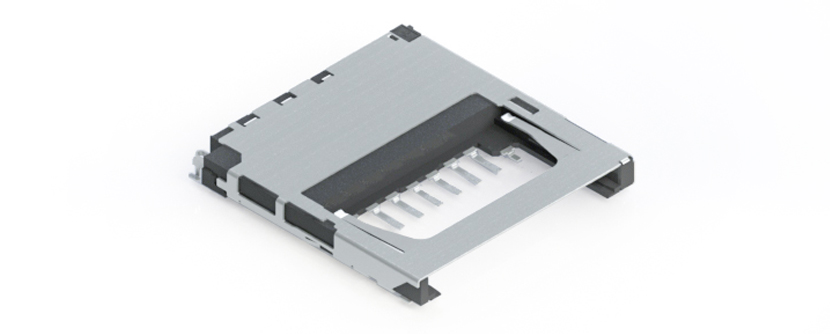

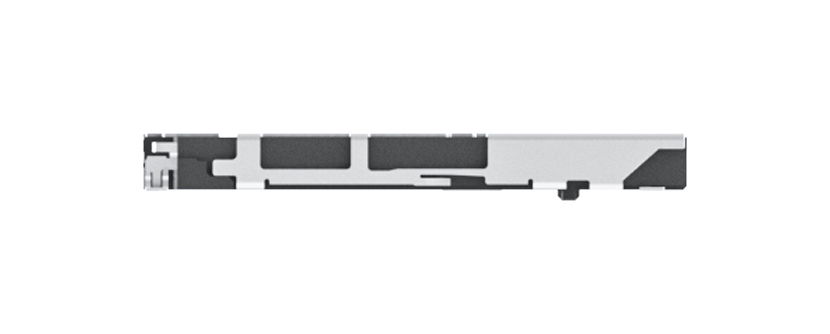

SD Card Connector -push/push type - space saving design
Features
Advantages
- Various removal/unlocking techniques such as manual, push/push or push/lock
- Mounting version for top and bottom of the PCB
- Special automotive versions with extended temperature range from -40° to 105°
Specifications
General Specification
- Mating Cycles
10,000 - Operating Temperature Range
-25 °C – 85 °C - Plating type, technology and coating thickness
Contact area:Ni-Au
Solder tail: Ni-SnCu - Packaging
Tape and reel - Product Compliance
Reach, RoHS
Electrical Specification
- (Initial) Contact Resistance
100 Milliohm at 1 mA - Insulation Resistance
1 Megaohm at 500 - (Dieletric) Withstanding Voltage
500 pin to shield / ground for 1 minute pin to pin - Voltage Rating
250 V AC rms
