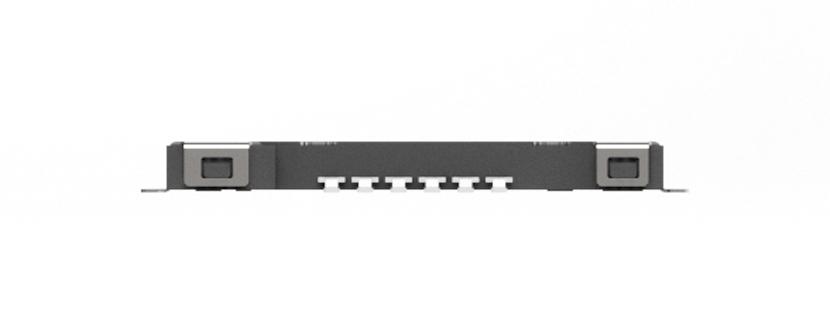

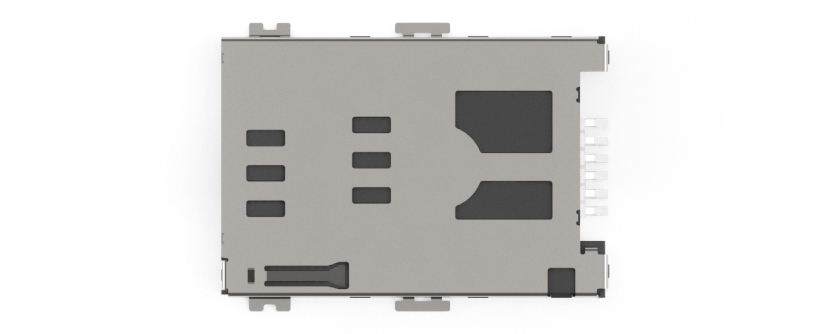

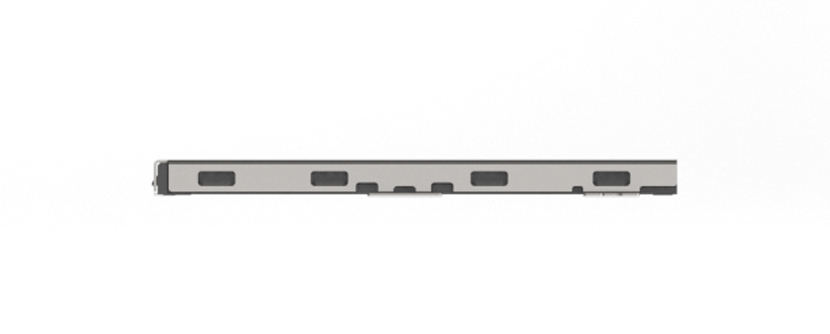

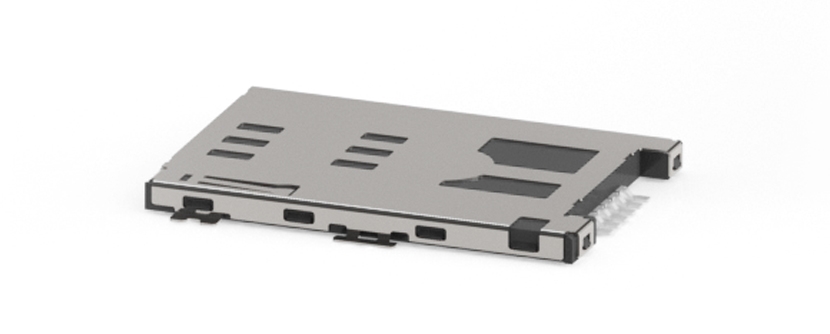

SIM Card Connector - push/push type - with add. solder pads

Features

  • FMS006-2620-0
  • Top mount version
  • With card detection switch
  • Automotive compliant
  • EMI prevention design
  • With addition solder pads

Advantages

  • Various unlocking techniques such as push/push, push/lock or tray type
  • Optional with or without card presence switch
  • Mounting version for top and bottom of the PCB

Specifications

General Specification
  • Mating Cycles
    5,000
  • Operating Temperature Range
    -55 °C – 85 °C
  • Plating type, technology and coating thickness
    Contact Plating: Copper Alloy
    Contact Area: Ni-Au
  • Packaging
    Tape and reel
  • Product Compliance
    Reach, RoHS
Electrical Specification
  • (Initial) Contact Resistance
    100 Milliohm at 1 mA
  • Insulation Resistance
    500 Megaohm at 500
  • (Dieletric) Withstanding Voltage
    250 pin to shield / ground for 1 minute pin to pin
  • Voltage Rating
    5 V AC rms
