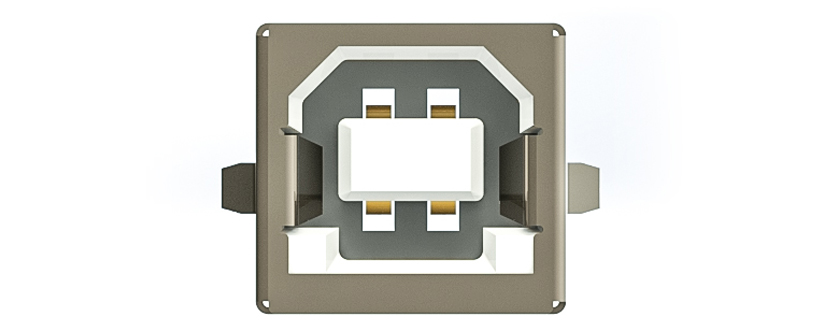

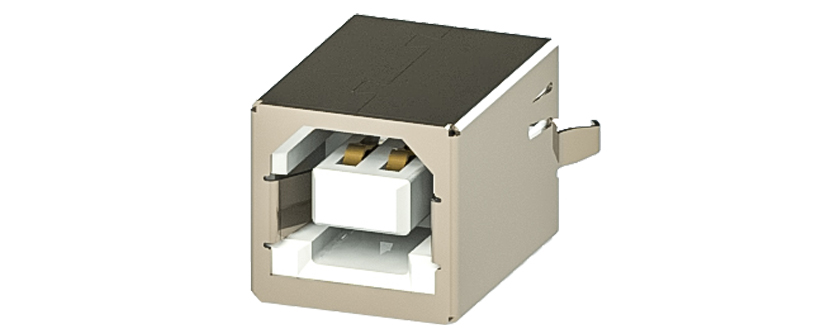

- USB-B-004
- Standardized according to Universal Serial Bus (USB) specification
Features
Advantages
- Worldwide standard, installed in almost every PC and other devices
- Downward compatibility with older transmission standards
- Integrated power and data transmission
- Immediately ready for use due to hot-plug principle (even during operation)
- No active installation necessary
Specifications
General Specification
- Plating type, technology and coating thickness
Solder Terminal - Sn over Ni
Mating Area Au Flash over Ni
Shell: Ni Plating - Product Compliance
Reach, RoHS
Electrical Specification
- (Initial) Contact Resistance
30 Milliohm - Insulation Resistance
1000 Megaohm - (Dieletric) Withstanding Voltage
500 V AC - Current Rating
1,5 A - Voltage Rating
30 V AC
Interface Specification
- Pin Count / Numbers of pins
4
