- USB-3.1-A-T9-AL-TRAY
- Standardized according to Universal Serial Bus (USB) specification
EN

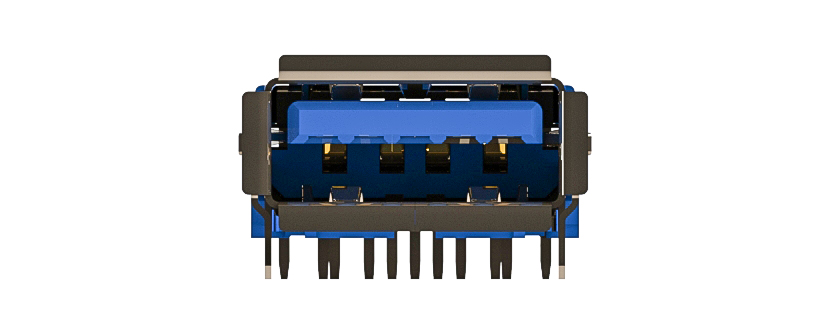

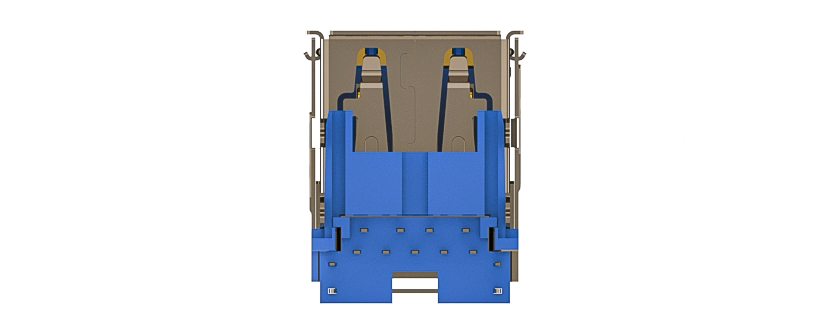

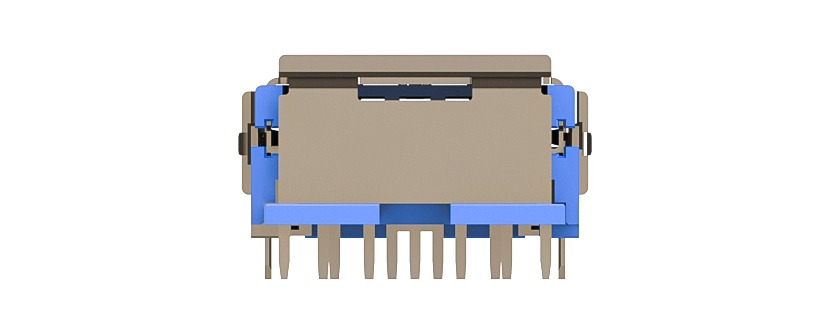

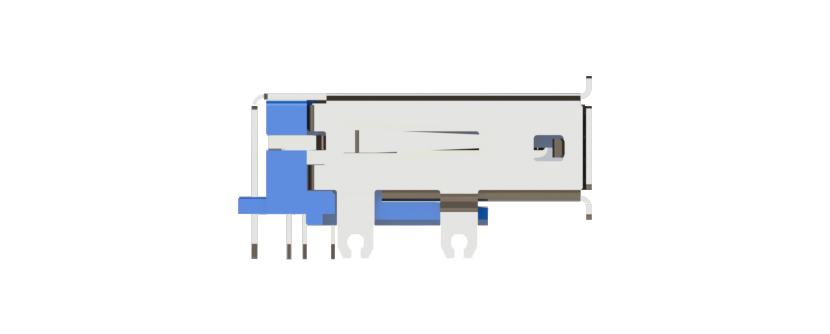

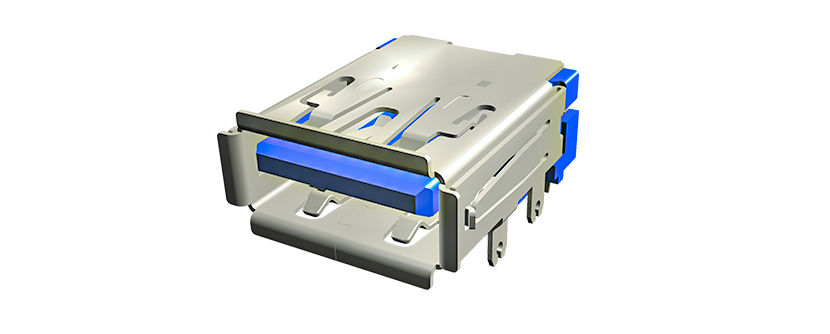

USB 3.1 - A-Type - Female - 90° - TH
Features
Advantages
- Worldwide standard, installed in almost every PC and other devices
- Downward compatibility with older transmission standards
- Integrated power and data transmission
- Immediately ready for use due to hot-plug principle (even during operation)
- No active installation necessary
Specifications
General Specification
- Operating Temperature Range
-25 °C – 105 °C - Plating type, technology and coating thickness
Underplate: 80µ" Nickel
Contact area: 30µ" Pd-Ni +2µ" Gold
Solder Tails area: 100µ" ~ 200µ" Tin (Lead Free) - Packaging
Tray - Product Compliance
Reach, RoHS
Electrical Specification
- (Initial) Contact Resistance
50 Milliohm - Insulation Resistance
100 Megaohm at 100 - (Dieletric) Withstanding Voltage
100 V AC for 1 minute - Current Rating
1,8 A 1 minute - Voltage Rating
100 V AC
Interface Specification
- Pin Count / Numbers of pins
9
