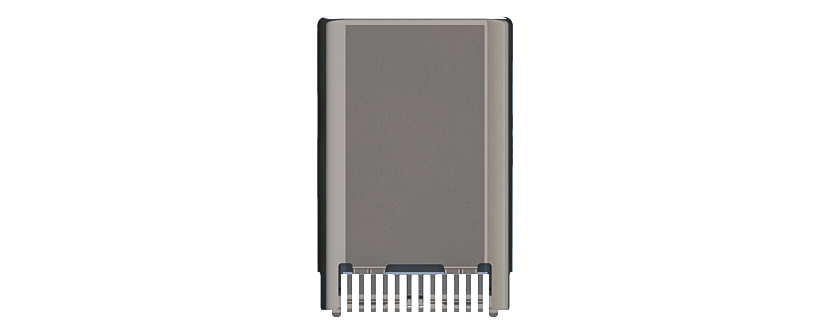

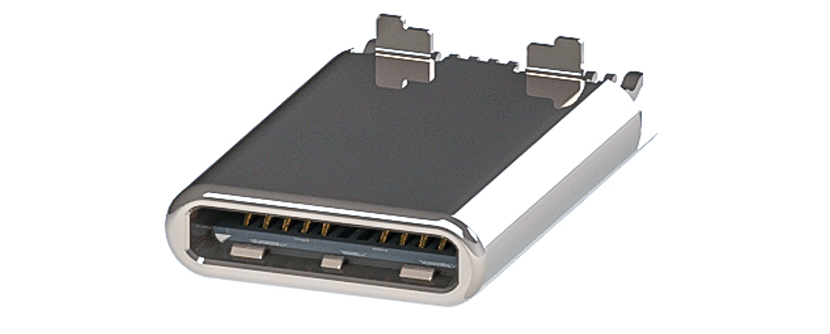

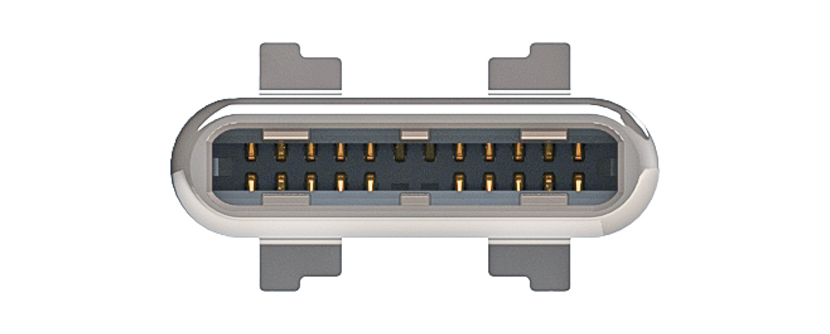

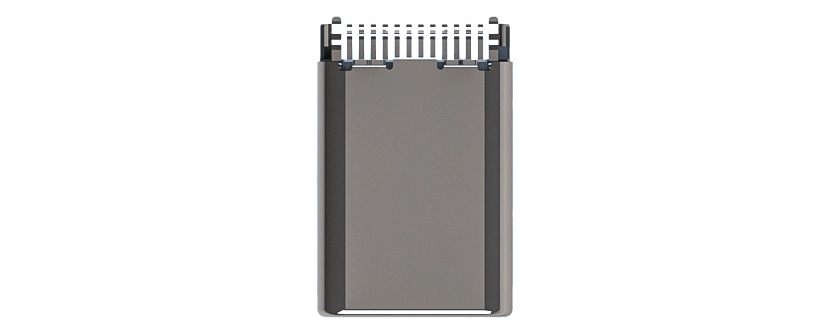

USB 3.1 - C-Type - Male - Straddle Type

Features

  • USB-3.1-C-CP-AL-TRAY
  • Standardized according to Universal Serial Bus (USB) specification
  • Available with 22 or 24 pins
Dimensioned drawing 3D Model
Request Product

Advantages

  • Worldwide standard, installed in almost every PC and other devices
  • Downward compatibility with older transmission standards
  • Integrated power and data transmission
  • Immediately ready for use due to hot-plug principle (even during operation)
  • No active installation necessary

Specifications

General Specification
  • Mating Cycles
    10,000
  • Operating Temperature Range
    -40 °C – 105 °C
  • Plating type, technology and coating thickness
    Underplate: 60µ"~ 150µ" Nickel.
    Contact area: 30µ" Pd-Ni +2µ" Selective Gold.
    Solder Tails area: 80µ" ~ 150µ" Tin (Lead Free).
  • Packaging
    Tray + Cap
  • Product Compliance
    Reach, RoHS
Electrical Specification
  • (Initial) Contact Resistance
    30 Milliohm
  • Insulation Resistance
    100 Megaohm at 100
  • (Dieletric) Withstanding Voltage
    100 V AC for 1 minute
  • Current Rating
    5 A 1 minute
  • Voltage Rating
    20 V
Interface Specification
  • Pin Count / Numbers of pins
    22
