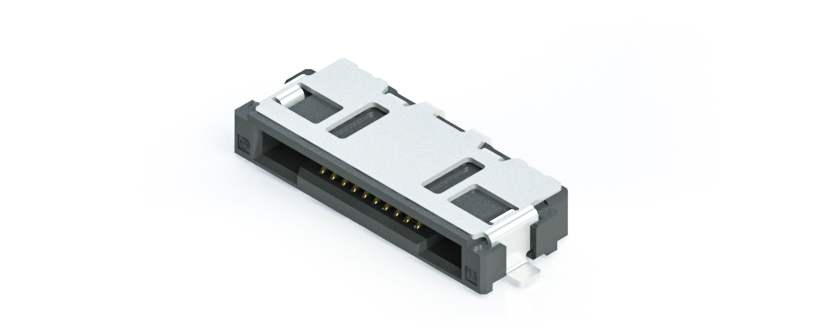

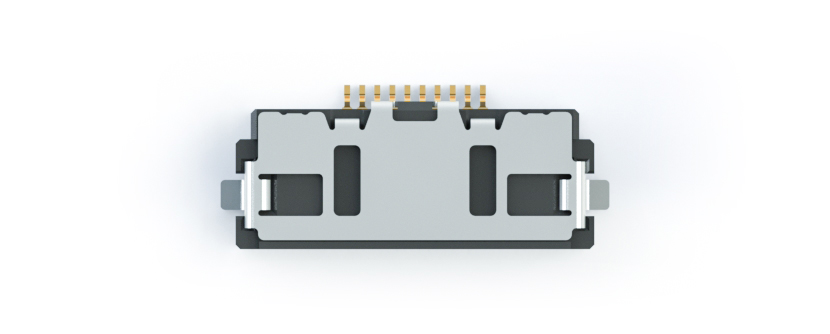

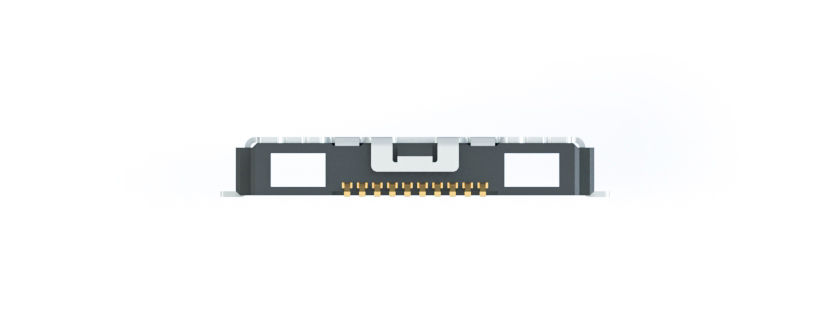

High Speed Non-ZIF - HF509 - 0.5 pitch - 10pins - 90°

Features

  • HF509S-10-03
  • High Speed connector with up to 5 Gbps transfer rate
  • 100 Ohm Differential Impedance
  • To be used with high speed FPC YFlex and stiffener with side locking mating function
  • Releasing of cable over stiffener function
  • Designed for Automotive use
Dimensioned drawing 3D Model
Request Product

Advantages

  • HF507 Series for LVDS applications with 21, 31, 41 and 51 pins
  • HF509 Series for IEEE applications with 10 pins
  • HF513 Series, the smallest and fastest connector with 30, 40 and 50 pins

Specifications

General Specification
  • Mating Cycles
    20
  • Operating Temperature Range
    -40 C° – 85 C°
  • Product Compliance
    Reach, RoHS
Electrical Specification
  • (Initial) Contact Resistance
    50 Milliohm
  • Insulation Resistance
    500 Megaohm
  • Voltage Rating
    50 V AC
