- HF513-30-01-VE
- High Speed connector with up to 10 Gbps transfer rate
- 100 Ohm Differential Impedance
- To be used with high speed FPC YFlex or High Speed FFC
- Releasing of cable over connector spring
- Designed for Automotive use
EN

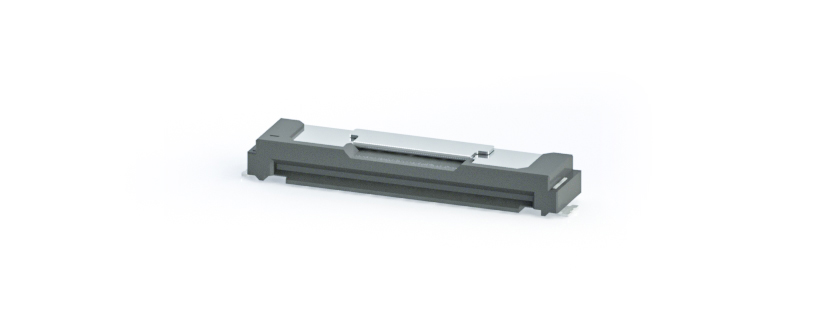

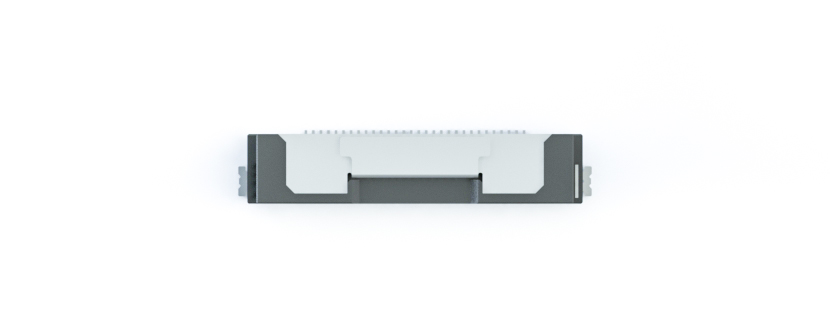

High Speed Non-ZIF - HF513 - 0.5 pitch - 30pins - 90°
Features
Advantages
- HF507 Series for LVDS applications with 21, 31, 41 and 51 pins
- HF509 Series for IEEE applications with 10 pins
- HF513 Series, the smallest and fastest connector with 30, 40 and 50 pins
Specifications
General Specification
- Mating Cycles
20 - Operating Temperature Range
-40 °C – 125 °C - Plating type, technology and coating thickness
Selective Au over Ni - Product Compliance
Reach, RoHS
Electrical Specification
- Insulation Resistance
500 Megaohm - Voltage Rating
50 V AC
Interface Specification
- Pin Count / Numbers of pins
30
