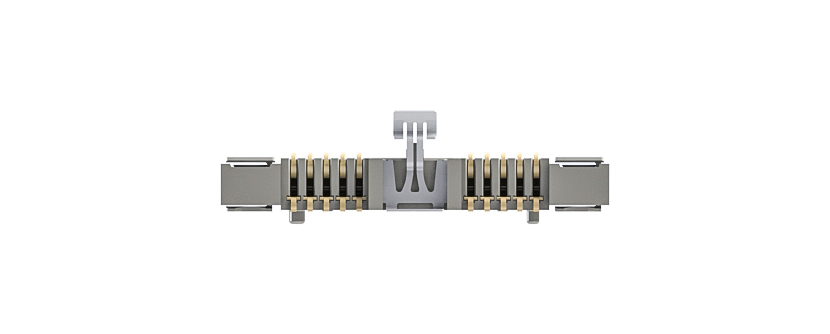

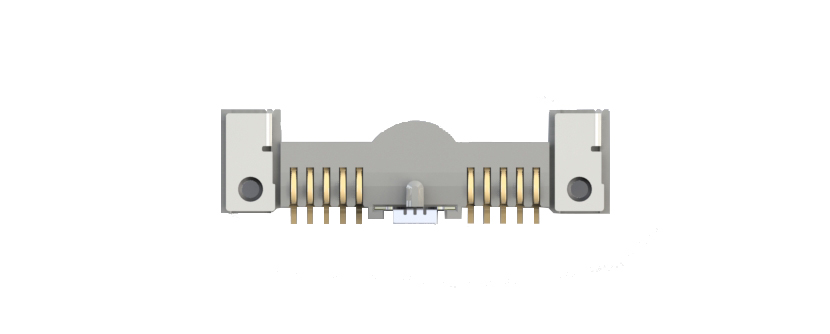

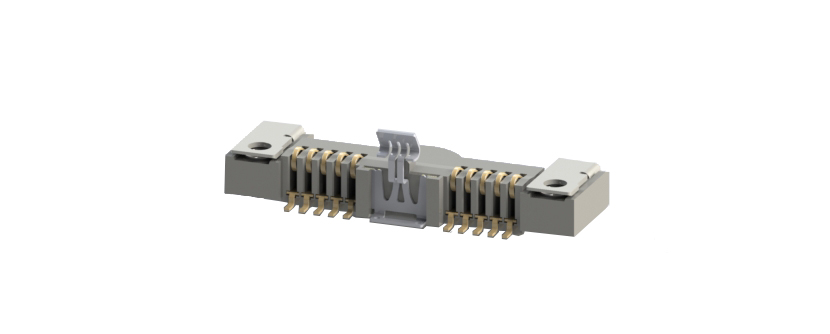

Power Connector - BECPOW - 10pins - 0,3µm AU plating

Features

  • BECPOW-1.5-10-S9-BF-REDC
  • Power connector for module application
  • Up to 1,5A per pin
  • Designed for Automotive use and other rough applications
  • With module screwing function

Advantages

  • BEC and HF301 Series has been developed and tested based on Automotive specifications
  • Special contact designs ensure long live stability during shock, vibrations and environment tough conditions
  • All connectors are produced in IATF16949 certified companies

Specifications

General Specification
  • Mating Cycles
    30
  • Operating Temperature Range
    -40 °C – 85 °C
  • Plating type, technology and coating thickness
    Underplate : Ni
    Contact Area: Gold plating B (15µ")
    Solder Area : Au Flash
  • Packaging
    Tape and Reel
  • Product Compliance
    Reach, RoHS
Electrical Specification
  • (Initial) Contact Resistance
    40 Milliohm
  • Insulation Resistance
    250 Megaohm at 500
  • (Dieletric) Withstanding Voltage
    500 V AC for 1 minute
  • Voltage Rating
    50 V DC
Interface Specification
  • Pitch
    1
  • Pin Count / Numbers of pins
    10
