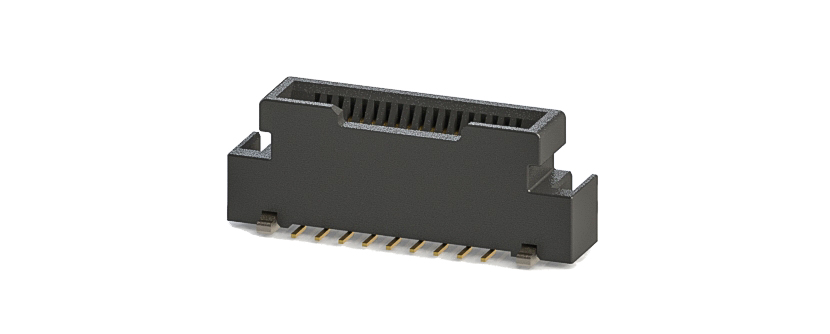

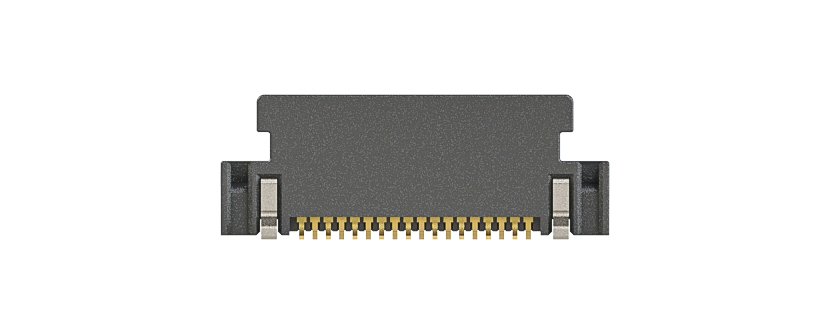

Non-ZIF - Y-LOCK V2 - 0.5 pitch - 18pins - 180°

Features

Y-LPF-2C5-18-S1-BF-REDC
Y-Lock pullforce Series Version 2 - with additional stiffener on FFC
Stiffener is locking in the connector automatically during plug in
Removal of FFC/FPC just by pulling out, no further action required
Poka Yoka mating function
FFC can be provided
Designed for Automotive use

Request Product

Advantages

Non-ZIF Board-to-Cable System
FFC only needs to be pressed into the lock (One-Push-Lock) and can simply be pulled out again (Pullforce)
Quick and easy assembly
Poka-yoke system
Different number of pin counts available
Automatic assembly of FFC possible

Specifications

General Specification

Mating Cycles
10
Plating type, technology and coating thickness
Underplate : Ni
Contact area:Au
Solder tail area : Au flash
Packaging
Tape and Reel
Product Compliance
Reach, RoHS

Electrical Specification

(Initial) Contact Resistance
50 Milliohm at 10
Insulation Resistance
1000 Megaohm at 100
Voltage Rating
50 V DC

Interface Specification

Pin Count / Numbers of pins
18
