- HF601-22-03-VE
- ZIF connector/cover type
- High speed type with up to 3Gbps transfer rate at 100Ohm differential impedance
- FFC with/without ears can be used (FFC can be provided by Yamaichi)
- Designed for Automotive use
EN

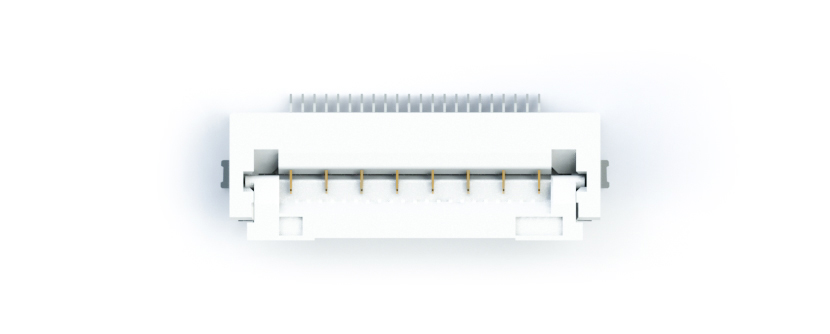

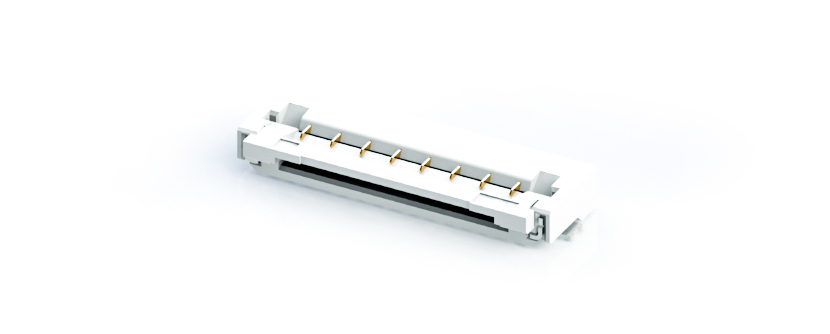

High Speed ZIF - HF601 - 0.5 pitch - 22 pins - 90°
Features
Advantages
- HF601 series has been developed and tested based on Automotive specifications
- Special contact designs ensure long live stability during shock, vibrations and environmentally tough conditions
- All connectors are produced in IATF16949 certified companies
Specifications
General Specification
- Mating Cycles
20 - Operating Temperature Range
-40 °C – 85 °C - Plating type, technology and coating thickness
Copper Alloy, Au over Ni - Packaging
Tape and Reel - Product Compliance
Reach, RoHS
Electrical Specification
- (Initial) Contact Resistance
50 Milliohm - Insulation Resistance
500 Megaohm - Voltage Rating
50 V AC
Interface Specification
- Pitch
0.5 - Pin Count / Numbers of pins
22
