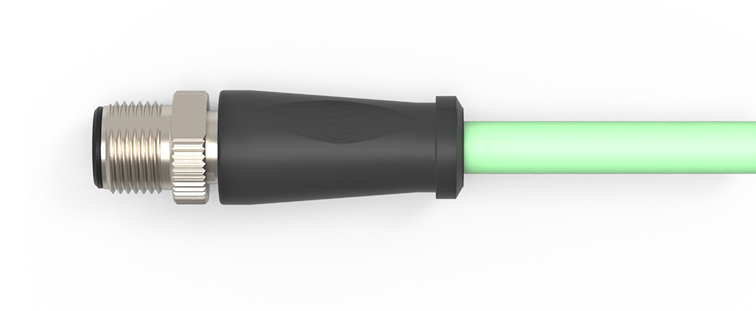

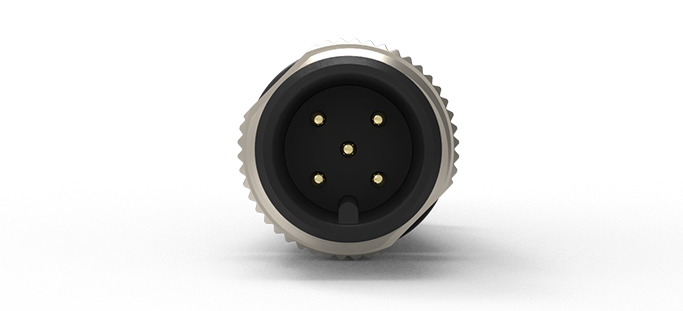

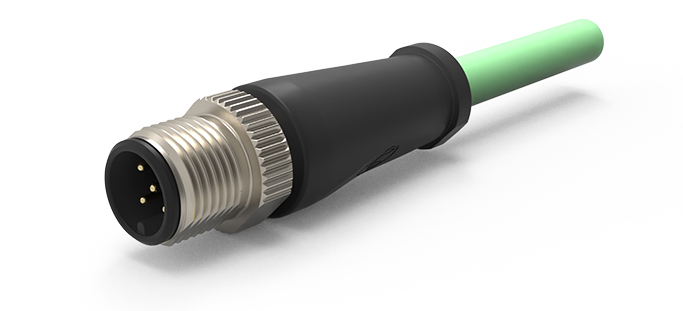

M12 - 5A - Male - Straight

Features

  • CYM12MS5AF-FECXXXX-100D01
  • Made in Germany
  • RoHS / Reach compliant

Specifications

General Specification
  • Mating Cycles
    100
  • Operating Temperature Range
    -40 °C – 90 °C
  • Plating type, technology and coating thickness
    Au over Ni
  • Coding
    5
  • IP Class
    IP65/IP67
Electrical Specification
  • Current Rating
    4 A
  • Voltage Rating
    60 V
