- CN109S-044-0001
- Host Connector
EN

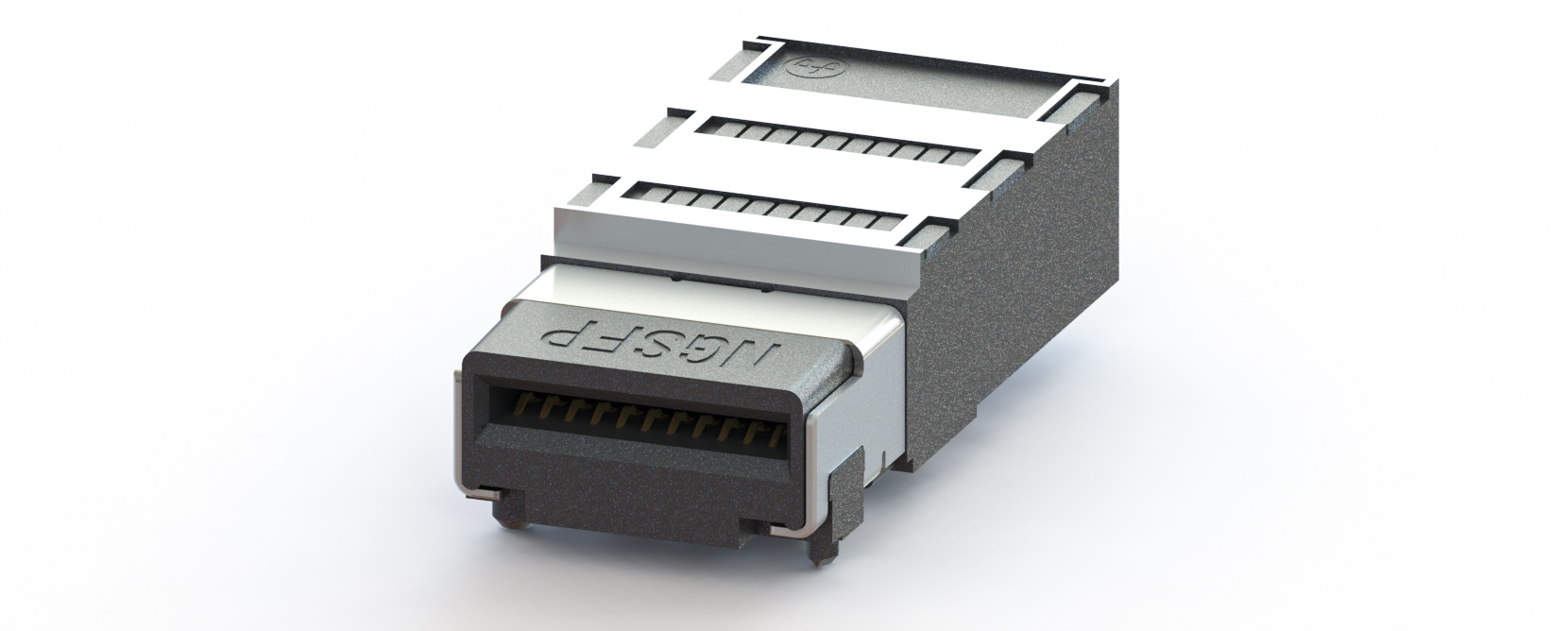

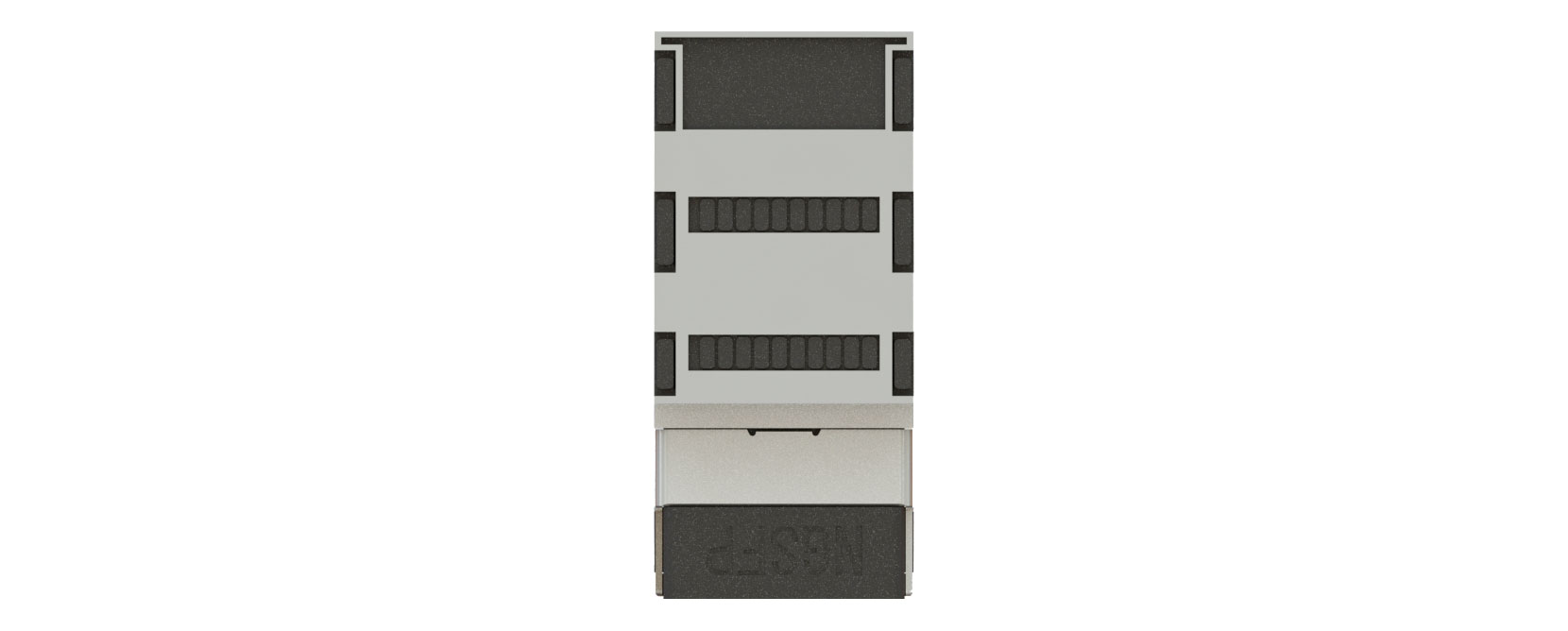

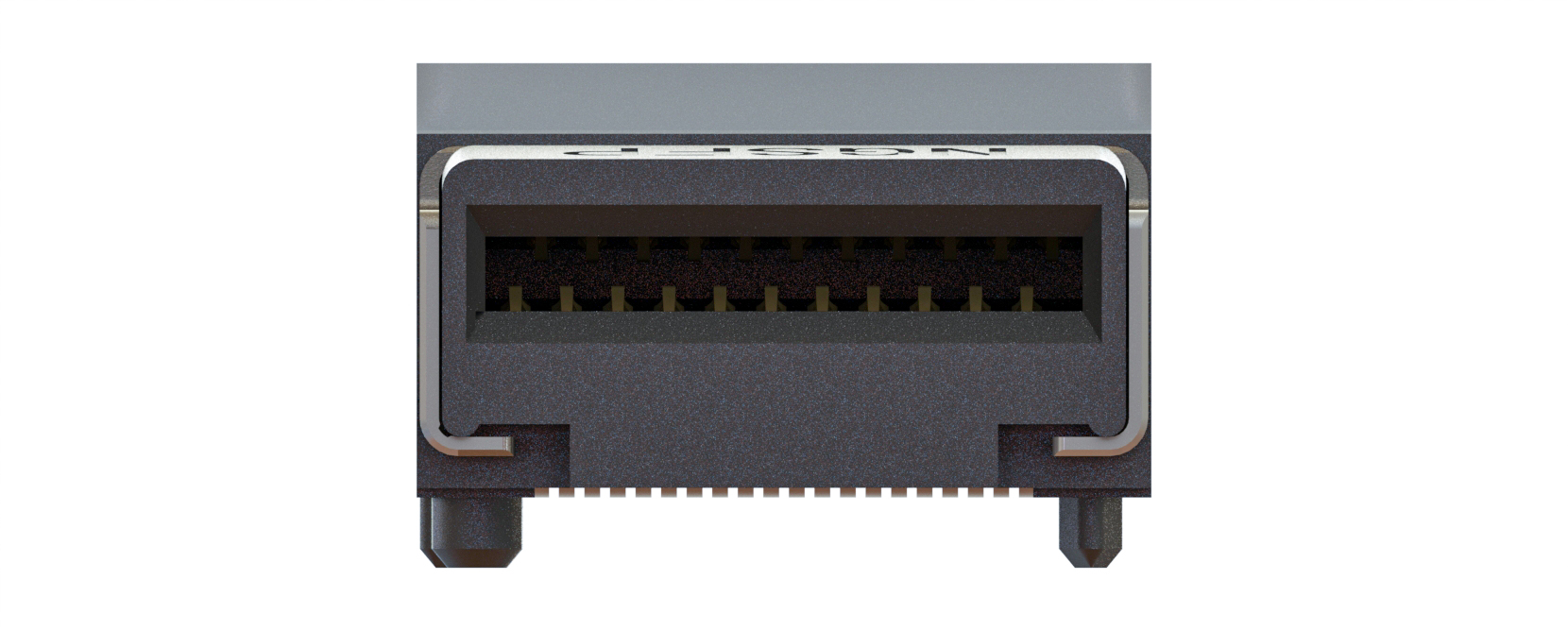

NGSFP-DD Host Connector
Features
Advantages
- Transmission performance: PAM4 400G (112G x 4ch)
- Mating compatible to SFP & DSFP modules
- 2 slots on the front and back double the density
Specifications
General Specification
- Mating Cycles
100 - Operating Temperature Range
-55 °C – 85 °C - Plating type, technology and coating thickness
Mating area: Au flash over Ni
Solder area: Sn over Ni
Electrical Specification
- (Initial) Contact Resistance
30 Milliohm at 100 mA - Insulation Resistance
1000 Megaohm at 300 - (Dieletric) Withstanding Voltage
300 V AC for 1 minute pin to pin - Current Rating
1 A 1 minute pin to shield/ground - Voltage Rating
30 V DC
Interface Specification
- Pin Count / Numbers of pins
44
