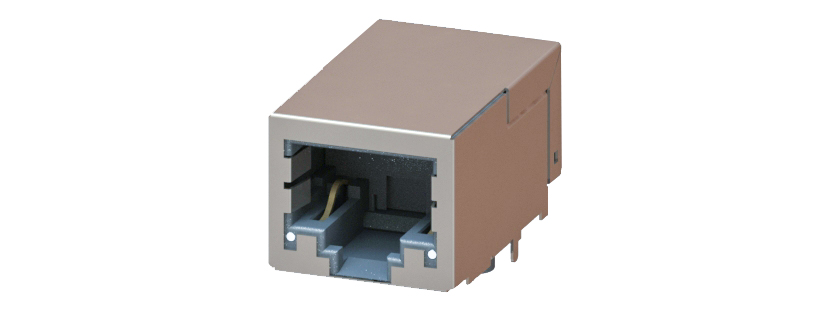

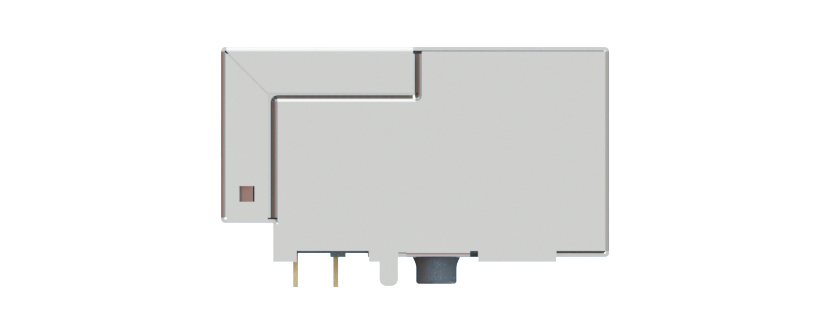

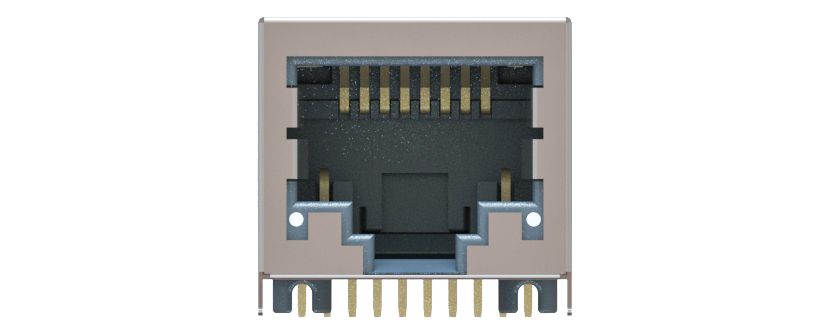

RJ45 - Y-CON - Jack - 90° - Tab Down - Magnetics - 2 Power Contacts - Lightpipes - 100MBit

Features

  • Y-ConJack-31
  • RJ45 jack 90°
  • With magnetics, light pipes and additional power contacts for power supply
  • For use with all Y-Con plugs

Advantages

  • Our jack portfolio is in different variants available:
  • Max. temperature range from -40°C up to 120°C
  • Optional additional power contacts up to 3,1 A @ 70°C
  • Optional magnetics
  • Optional light pipes for reflow soldering
  • Optional EMI shield springs
  • Transmission rates up to 10GBit

Specifications

General Specification
  • Mating Cycles
    1,500
  • Operating Temperature Range
    -40 °C – 120 °C
  • Plating type, technology and coating thickness
    Shield:
    Nickel plated (60µ") brass. Thickness 0,25mm

    In soldering area: Tin plating (min 80µ") over nickel (min Ni 50µ")

    Contacts:
    In contact area:Gold plating (min 30µ'') over nickel (min Ni 50µ")

    In soldering area: Tin plating (min 80µ") over nickel (min Ni 50µ")
  • Packaging
    Tray / Tape & Reel
  • POE
    no
Electrical Specification
  • (Initial) Contact Resistance
    40 Milliohm
  • Insulation Resistance
    500 Megaohm
  • (Dieletric) Withstanding Voltage
    1000 V DC
  • Current Rating
    2,1 A
  • Voltage Rating
    35 V AC
Interface Specification
  • Pitch
    1
  • Pin Count / Numbers of pins
    10
