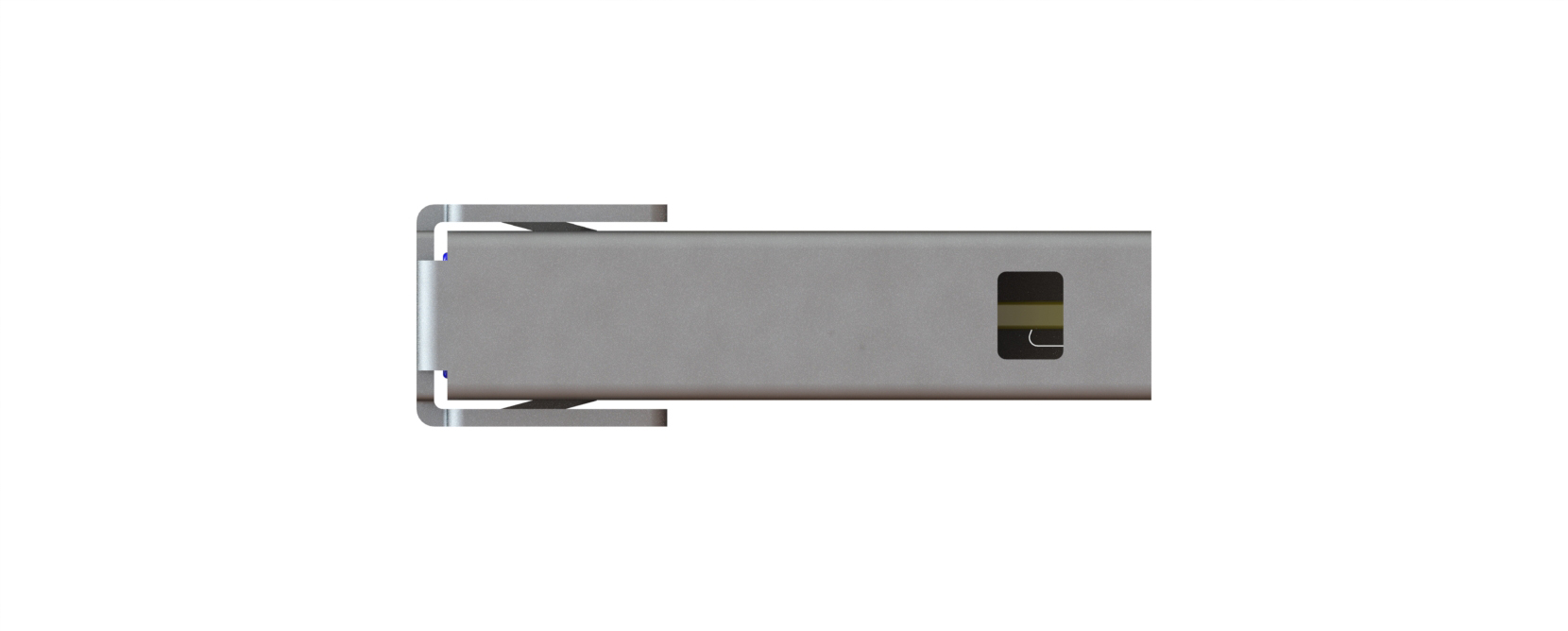

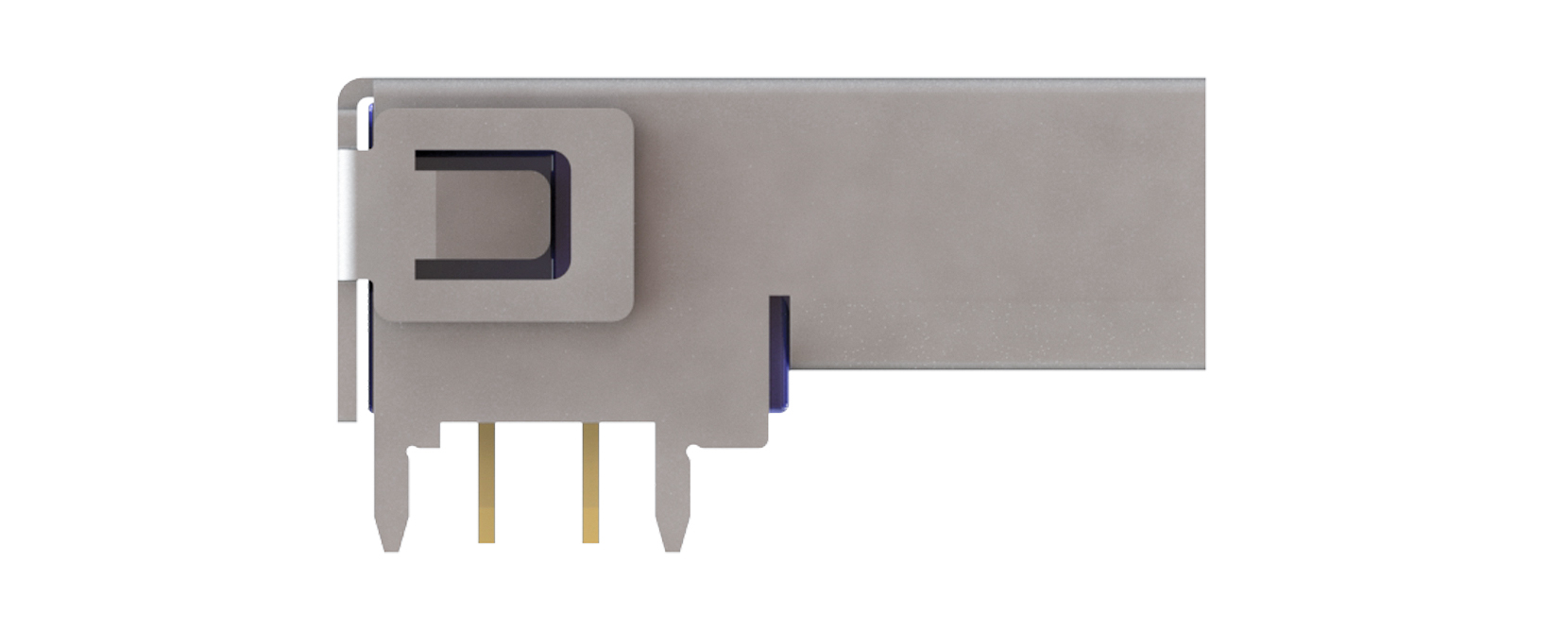

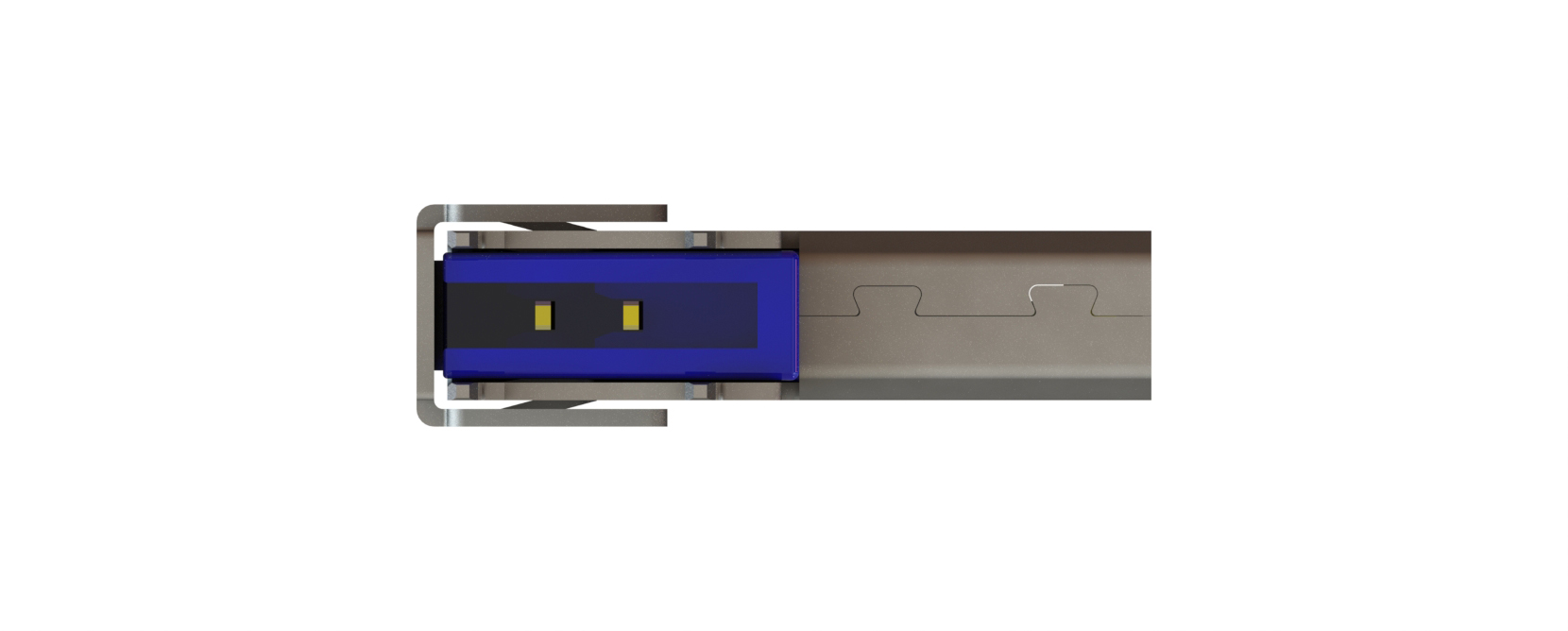

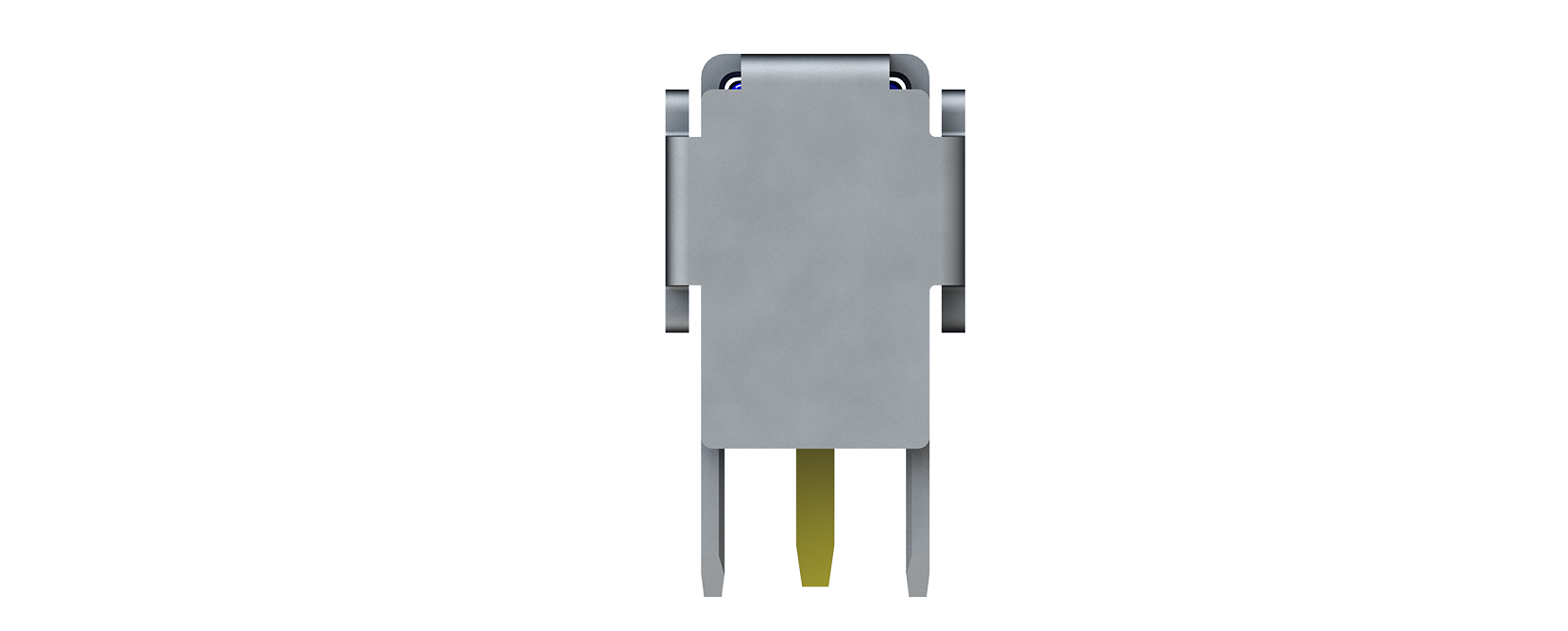

Single Pair Ethernet - Y-SPE - IP20 - Jack 90° - IEC 63171-2

Features

  • Y-SPE2-J9STTMP-11-NOALR1T
  • Mating face according to IEC 63171-2
  • 90° version for THR soldering
  • Small in size and weight
  • Future oriented technology towards industry 4.0
Dimensioned drawing
Request Product

Advantages

  • Transmission lengths of up to 1,000 m and transmission rates up to 10 GB/s
  • Additional power transmission up to 50 W via Power over Data Line (PoDL) possible
  • Mating faces of sub-standards IEC 63171-2 /-5 /-6 /-7 with IP20 or IP6X solutions available
  • M12 based connectors with screw or Push-Pull locking mechanism (acc. IEC 61076-2-012)

Specifications

General Specification
  • Mating Cycles
    1,000
  • Operating Temperature Range
    -40 °C – 85 °C
  • Plating type, technology and coating thickness
    In contact area:Min 30μ’’ Au over min 60μ’’ Ni
    In soldering area:Min.80μ’’ Sn over min.60μ’’Ni
  • Packaging
    Tray
  • Contact Type
    Solder
  • IP Class
    IP20
Electrical Specification
  • (Initial) Contact Resistance
    10 Milliohm at 3 A
  • Insulation Resistance
    500 Milliohm at 500
  • (Dieletric) Withstanding Voltage
    1000 V DC for 1 minute pin to pin
  • Current Rating
    3 A 1 minute pin to shield/ground
  • Voltage Rating
    60 V DC
Interface Specification
  • Soldering Technology
    THR & SMD
  • In case of THR or SMD: according to
    J-STD-020D or newer
  • Pitch
    2
  • Pin Count / Numbers of pins
    2
  • Contact Type
    Solder
