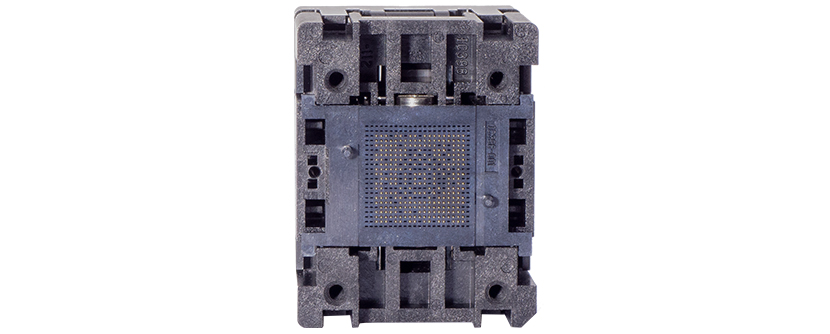

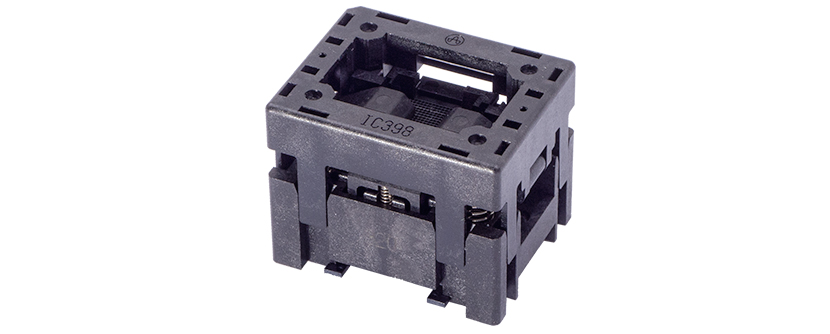

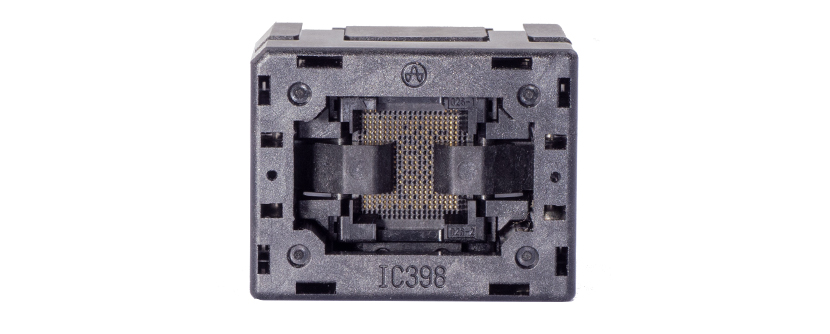

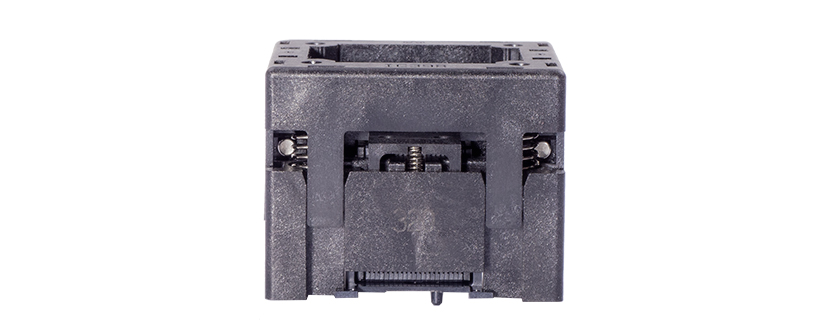

IC398-Series - Open Top

Features

  • Open top CMT solution
  • Suitable for BGA and LGA packages with 0.50 mm pitch
  • U-shape or double bow contact structure

Advantages

  • Compact solution suitable for applications with autoloading equipment
  • Suitable for different kind of depopulation
  • Stamped contact type

Specifications

General Specification
  • Mating Cycles
    10,000
  • Operating Temperature Range
    -40 °C – 150 °C
Electrical Specification
  • (Initial) Contact Resistance
    100 Milliohm
  • Insulation Resistance
    1000 Megaohm
  • (Dieletric) Withstanding Voltage
    100 V AC
  • Current Rating
    1 A
Interface Specification
  • Pitch
    0.5
  • Pin Count / Numbers of pins
    500
