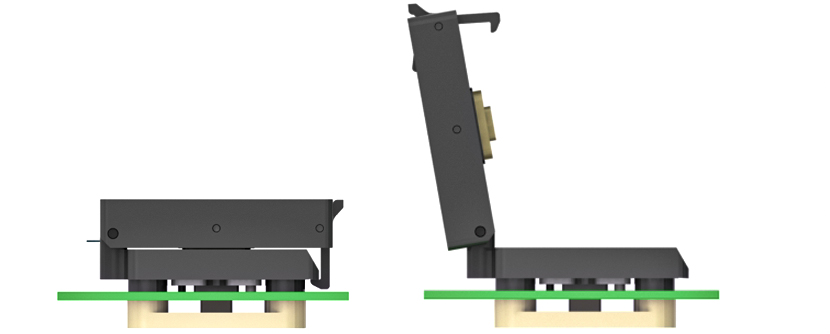

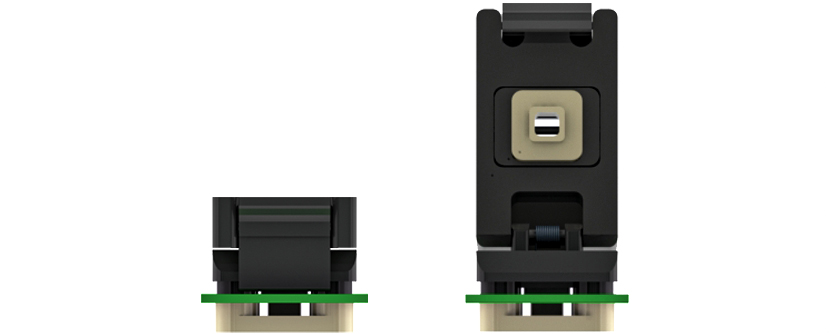

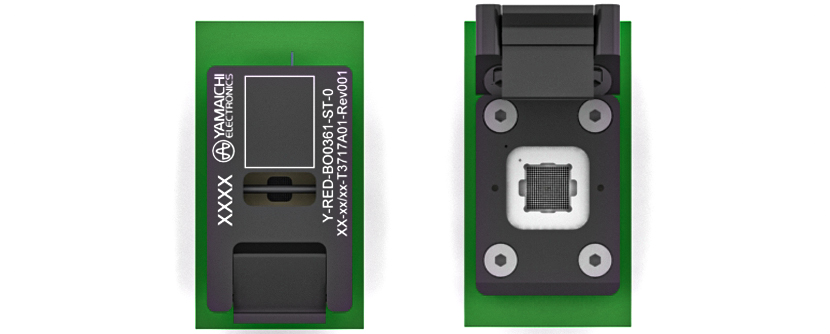

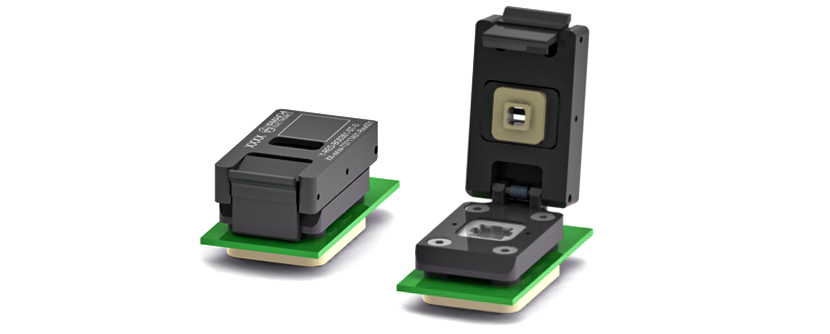

Y-RED Standard & Low Inductance Socket

Features

  • For pitches starting at 0.30 mm
  • Suitable for packages CSP/BGA, LGA and QFN
  • Usage for standard lab & reliability applications

Advantages

  • Standard performance with robust pins
  • Low inductance Y-RED with very low self-inductance
  • Easy socket to PCB assembly with pre-assembled mounting plate
  • Optional stiffener

Specifications

General Specification
  • Mating Cycles
    50,000
  • Operating Temperature Range
    -40 °C – 150 °C
  • Socket Type
    Clamshell
Electrical Specification
  • (Initial) Contact Resistance
    50 Milliohm
  • Current Rating
    1.2 A
Interface Specification
  • Pitch
    0.3
  • Pin Count / Numbers of pins
    1,200
