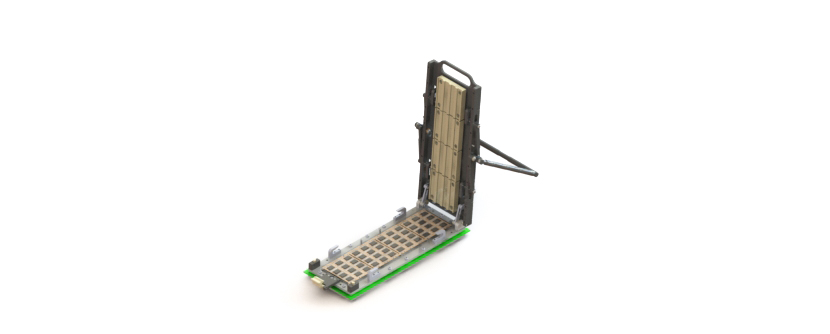

YED900 High Volume Burn-In Socket

Features

  • Contacting lead frames
  • High pin count capable
  • Reliable probe pin technology
  • Robust burn-in socket
  • Easy operating closing mechanism

Advantages

  • Burn-In socket for high volume products
  • High device density in burn-in board
  • Enables device tracing
  • Selected materials to overcome elongation during temperature cycles
  • Flat design and reduces weight

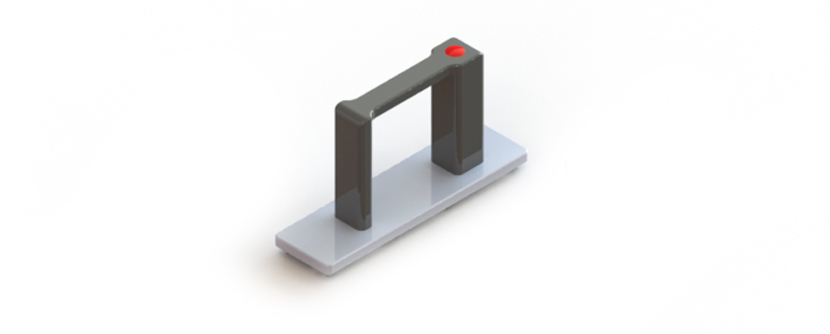

  • Optional pneumatic tool for lead frame handling

Specifications

General Specification
  • Operating Temperature Range
    -55 °C – 150 °C
Electrical Specification
  • (Initial) Contact Resistance
    50 Milliohm
  • Current Rating
    1,2 A
