- Open top THT socket solution suitable for Dual Inline packages (DIP)
- Pitch 2.54 mm pitch standard
- Variable socket outline according to package dimensions
EN

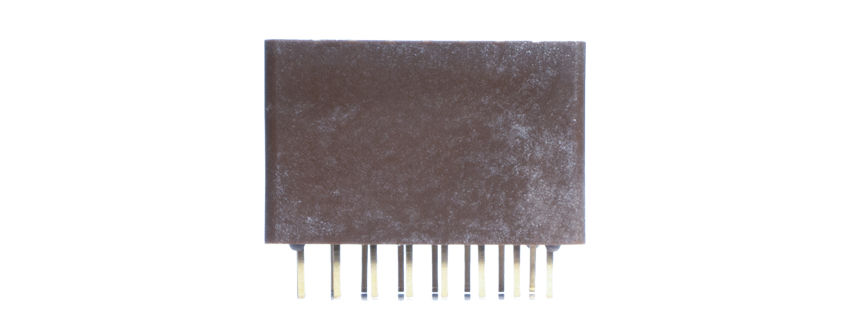

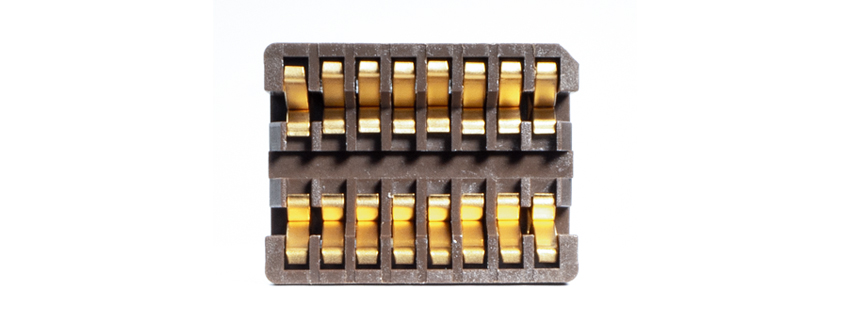

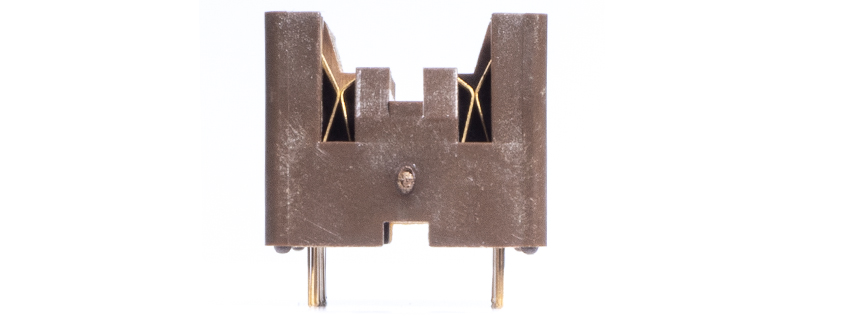

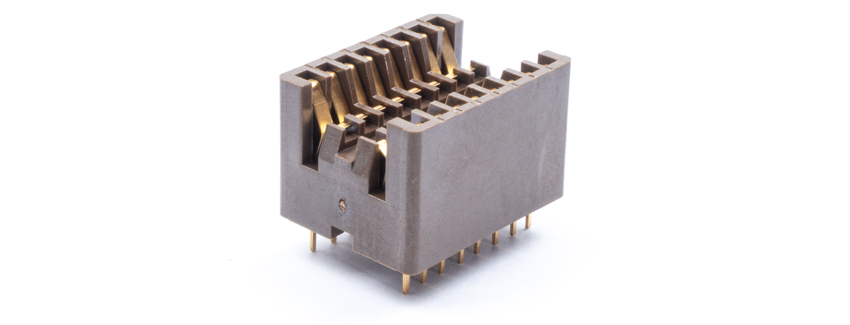

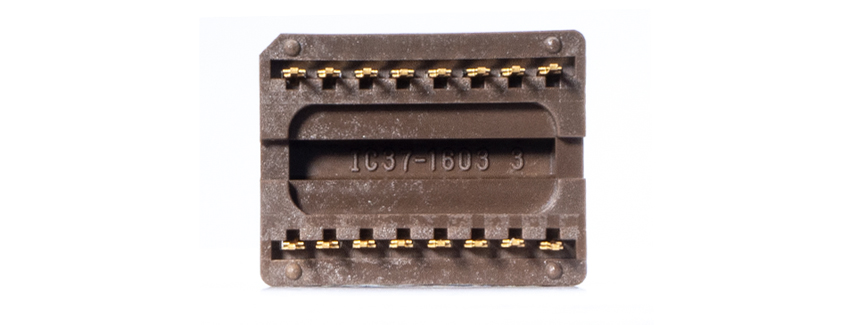

IC37-Series - Open Top
Features
Advantages
- Open top solution suitable either for manual or automatic loading
- Outstanding durability with low insertion withdrawal force
- Dual wipe contacts to ensure high reliability
- Low costs due to selective gold plating
- Applicable for IC packages and side braze packages
- Ideal for automated burn-in
Specifications
General Specification
- Mating Cycles
25,000 - Operating Temperature Range
-40 °C – 170 °C
Electrical Specification
- (Initial) Contact Resistance
20 Milliohm - Insulation Resistance
1000 Megaohm - (Dieletric) Withstanding Voltage
700 V AC - Current Rating
1 A
Interface Specification
- Pitch
2.54 - Pin Count / Numbers of pins
64
