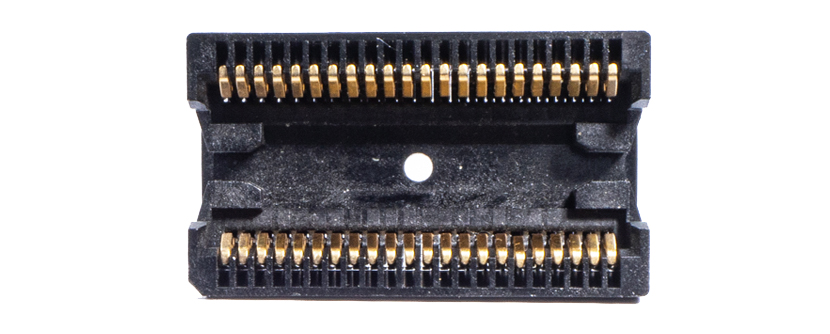

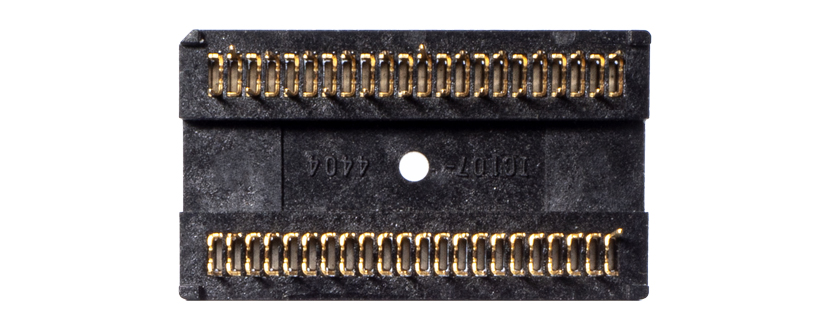

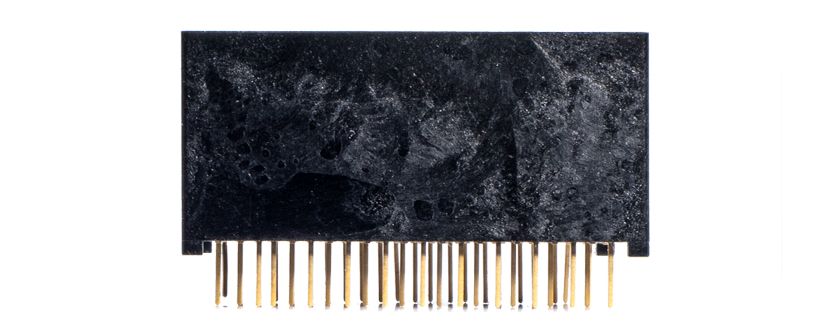

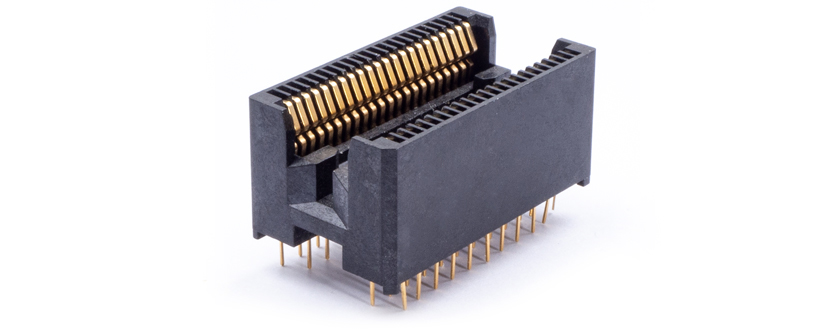

IC107-Series - Open Top

Features

  • Open top THT socket solution suitable for SOJ packages to be inserted in "live-bug" orientation
  • Pitch 1.27 mm standard
  • Variable socket outline according to package dimensions

Advantages

  • Open top solution suitable either for manual or automatic loading
  • Outstanding durability with low insertion withdrawal force
  • Guides for automated operation
  • The larger contact area and two-point contact design ensures high contact reliability

Specifications

General Specification
  • Mating Cycles
    10,000
  • Operating Temperature Range
    -55 °C – 170 °C
Electrical Specification
  • (Initial) Contact Resistance
    30 Milliohm
  • Insulation Resistance
    1000 Megaohm
  • (Dieletric) Withstanding Voltage
    700 V AC
  • Current Rating
    1 A
Interface Specification
  • Pitch
    1.27
  • Pin Count / Numbers of pins
    26
