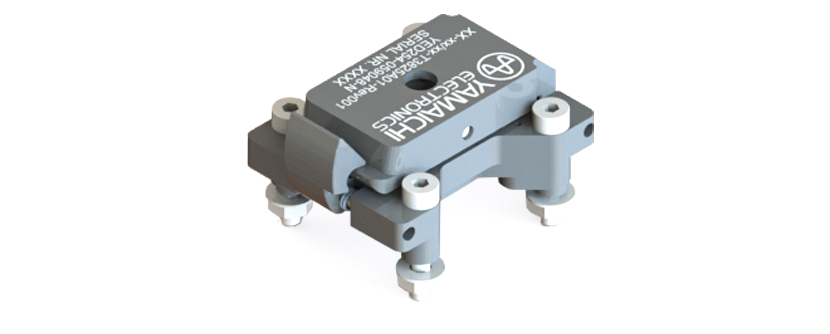

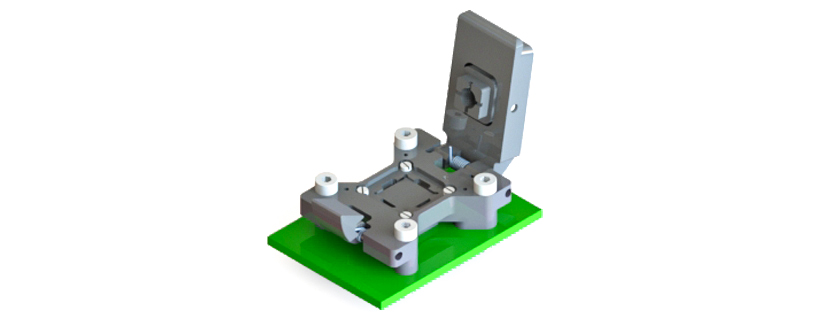

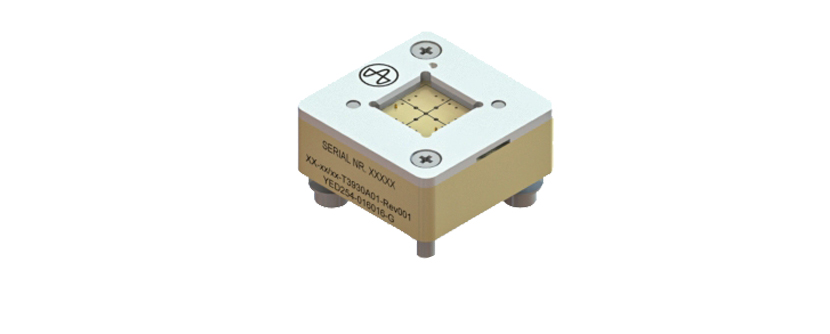

YED254 Test Contactor

Features

  • Customised Test Contactor for pitch sizes ≥ 0.30 mm
  • Easy to close cover
  • Higher temperature range available

Advantages

  • Contact force (typical): 15 g to 25 g
  • Outstanding performance
  • Lab applications
  • Suitable for HAST, HTOL, Burn-In or any other reliability test
  • Optional: serial number and data matrix code

Specifications

General Specification
  • Mating Cycles
    50,000
  • Operating Temperature Range
    -55 °C – 150 °C
Electrical Specification
  • (Initial) Contact Resistance
    50 Milliohm
  • Current Rating
    1.2 A
Interface Specification
  • Pitch
    0.3
