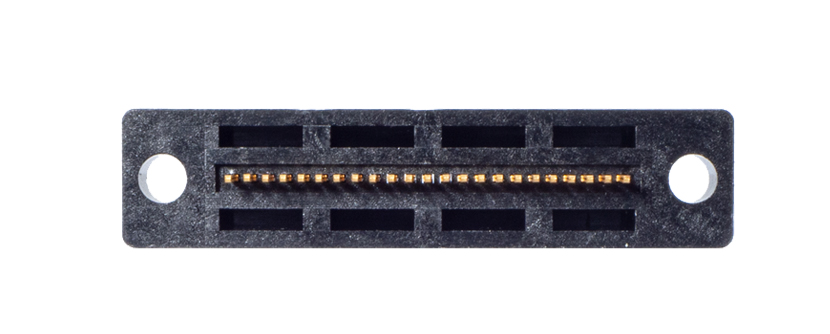

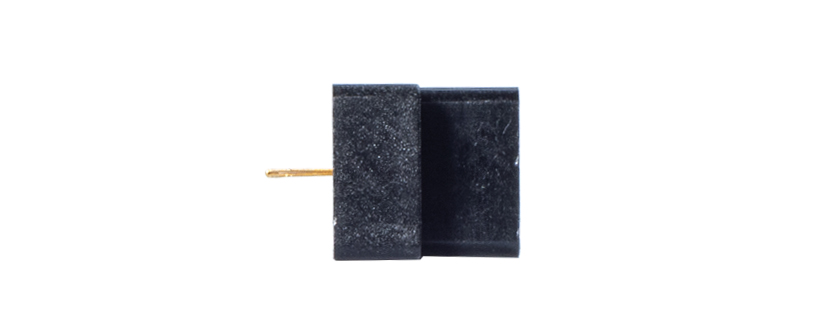

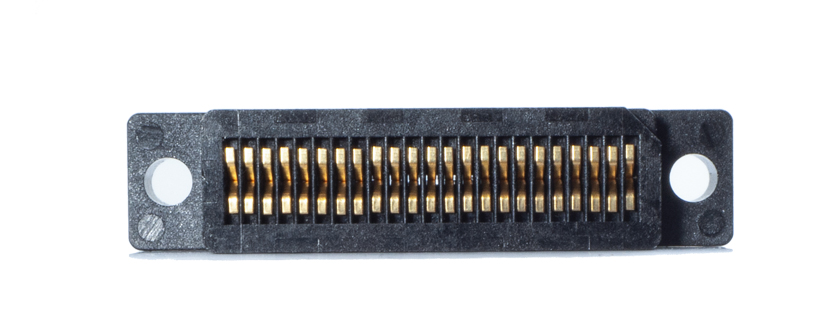

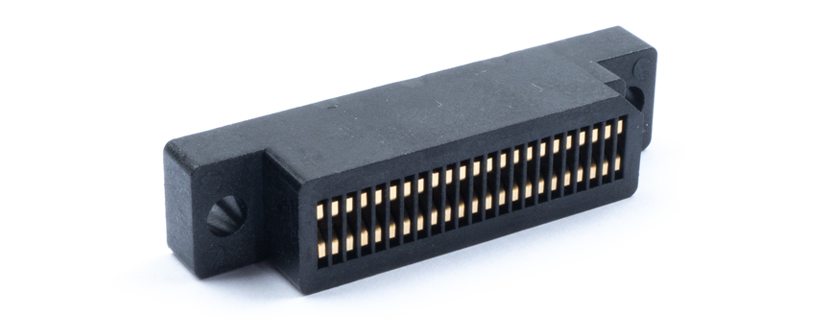

- Open top THT socket solution suitable for Single Inline packages (SIP)
- Pitch from 1.00mm up to 2.00mm standard
- Variable socket outline according to package dimensions
Features
Advantages
- Open top solution suitable for manual loading
- Outstanding durability with low insertion withdrawal force
- Dual wipe contacts to ensure high reliability
- Low costs due to selective gold plating
Specifications
General Specification
- Mating Cycles
10,000 - Operating Temperature Range
-40 °C – 150 °C
Electrical Specification
- (Initial) Contact Resistance
30 Milliohm - Insulation Resistance
1000 Megaohm - (Dieletric) Withstanding Voltage
700 V AC - Current Rating
1 A
Interface Specification
- Pitch
1 - Pin Count / Numbers of pins
56
