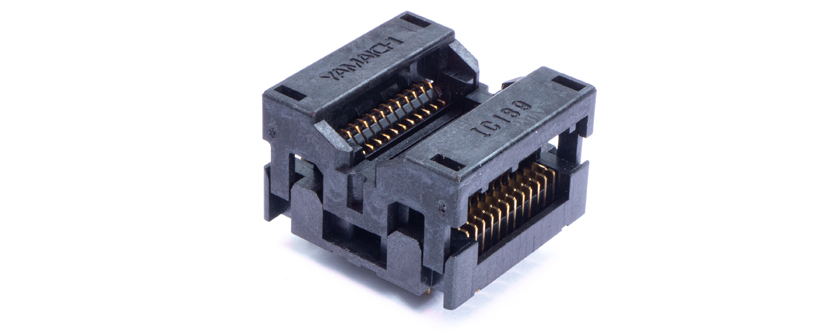

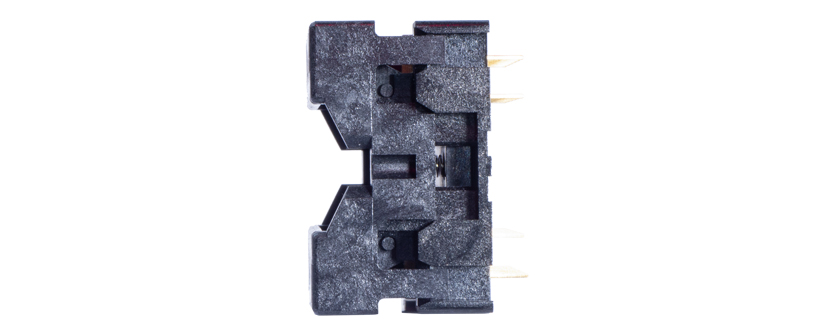

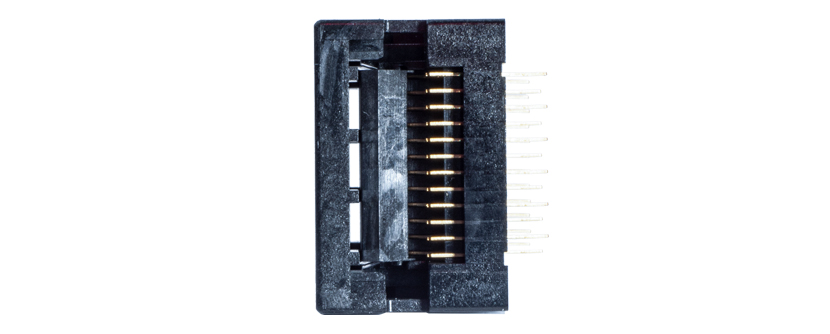

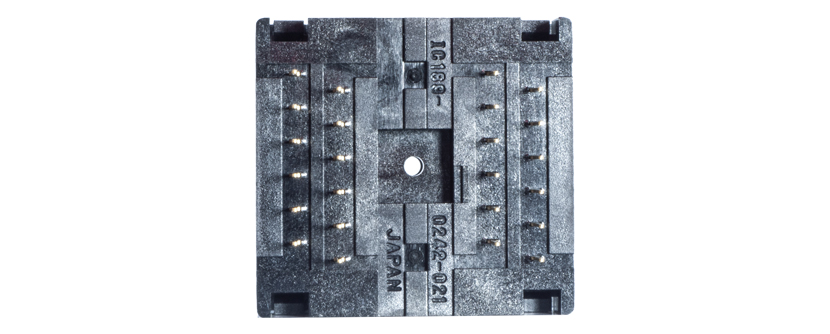

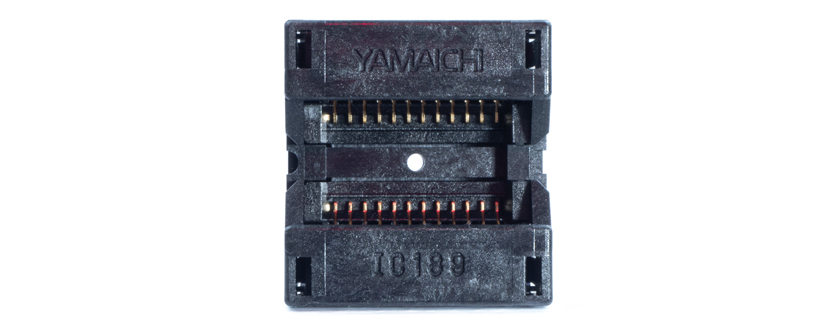

IC189-Series - Open Top

Features

  • Open top THT socket solution suitable for SOP packages with gullwing leads
  • Pitch from 0.40 mm up to 1.27 mm standard
  • Variable socket outline according to package dimensions

Advantages

  • Open top solution suitable for autoloading equipment
  • Compact outline socket dimensions optimized to fit the packages and board density
  • Package insertion live bug with guide for its proper positioning
  • Single tip foot stamped contact type

Specifications

General Specification
  • Mating Cycles
    10,000
  • Operating Temperature Range
    -40 °C – 150 °C
Electrical Specification
  • (Initial) Contact Resistance
    30 Milliohm
  • Insulation Resistance
    1000 Megaohm
  • (Dieletric) Withstanding Voltage
    100 V AC
  • Current Rating
    600 mA
Interface Specification
  • Pitch
    0.4
  • Pin Count / Numbers of pins
    88
