- Open top THT socket solution suitable for SOP packages with gullwing leads
- Pitch 0.50 mm standard
- Variable socket outline according to package dimensions
EN

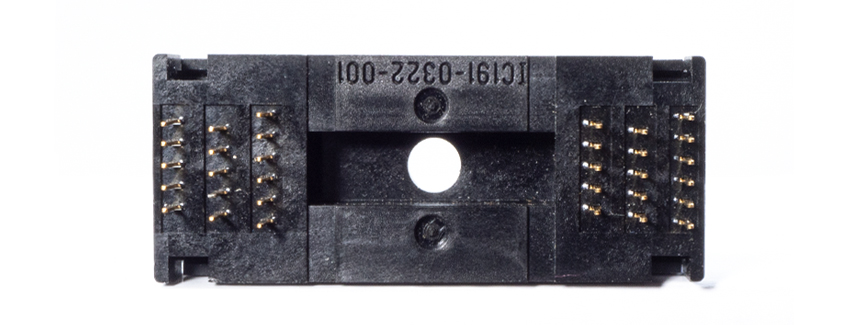

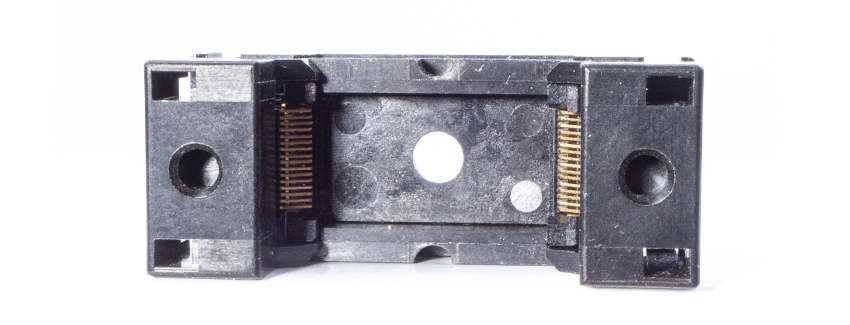

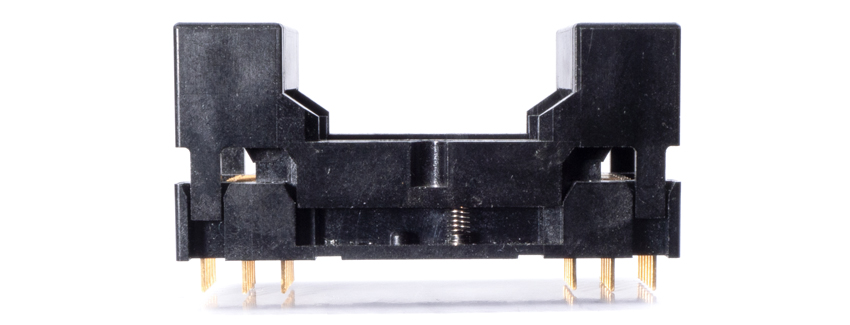

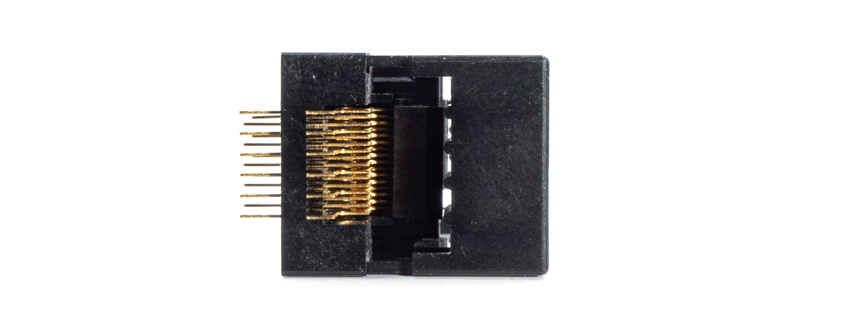

IC191-Series - Open Top
Features
Advantages
- Open top solution suitable for autoloading equipment
- Compact outline socket dimensions optimized to fit the packages and board density
- Package insertion live bug with guide for its proper positioning
- Single tip foot stamped contact type
Specifications
General Specification
- Mating Cycles
10,000
Electrical Specification
- (Initial) Contact Resistance
30 Milliohm - Insulation Resistance
1000 Megaohm - (Dieletric) Withstanding Voltage
700 V AC - Current Rating
600 mA
Interface Specification
- Pitch
0.5 - Pin Count / Numbers of pins
56
