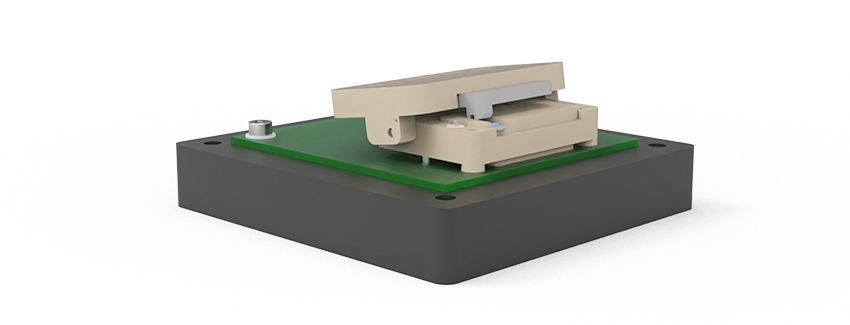

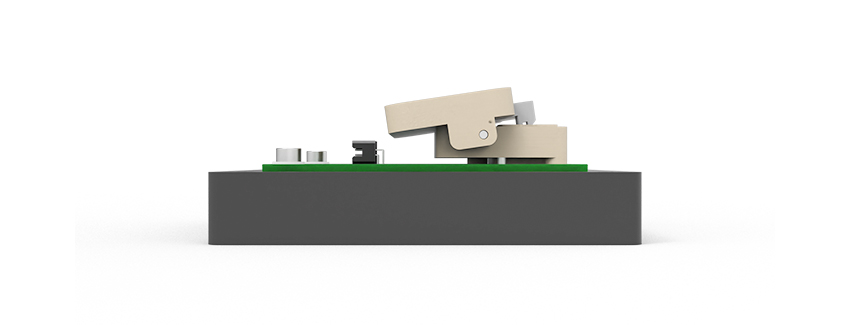

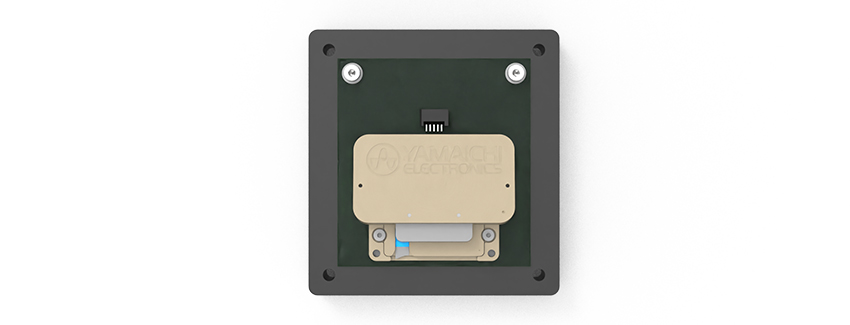

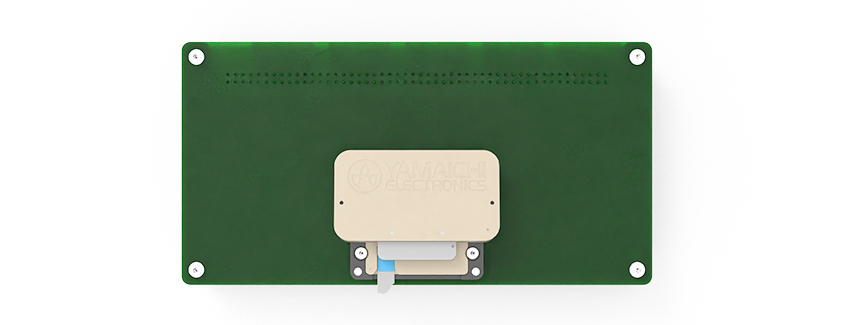

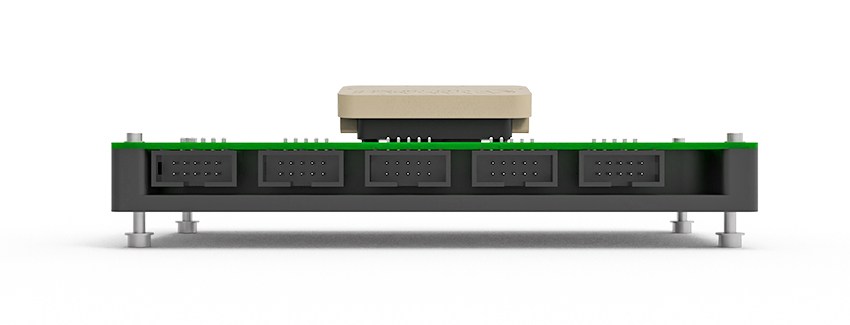

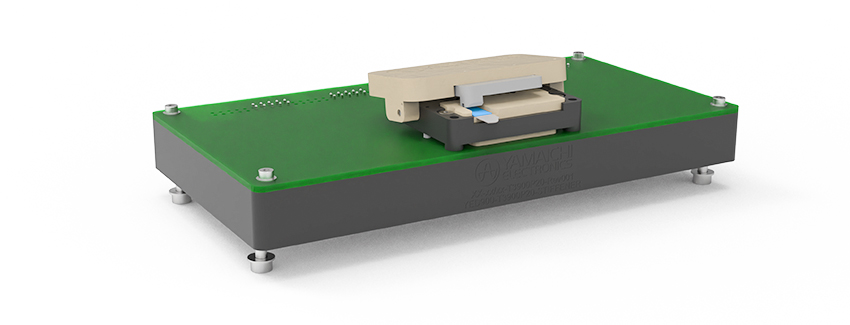

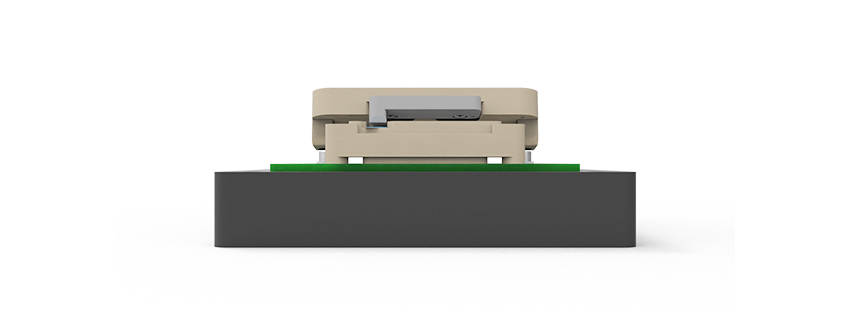

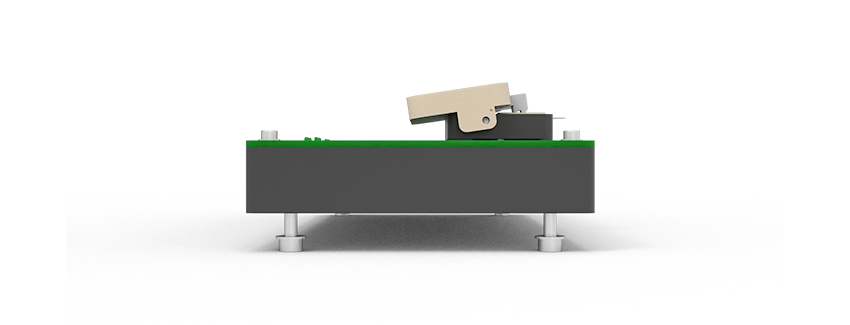

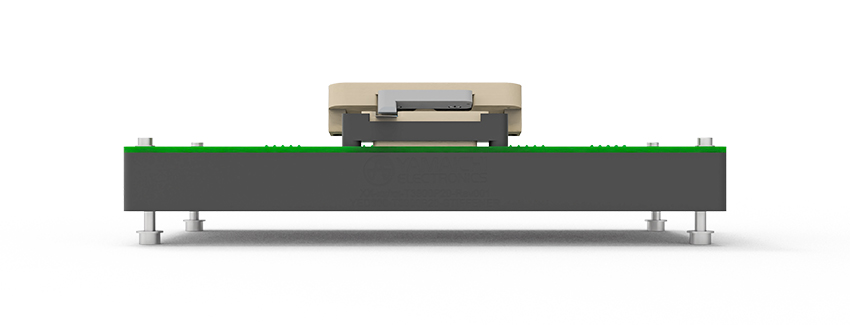

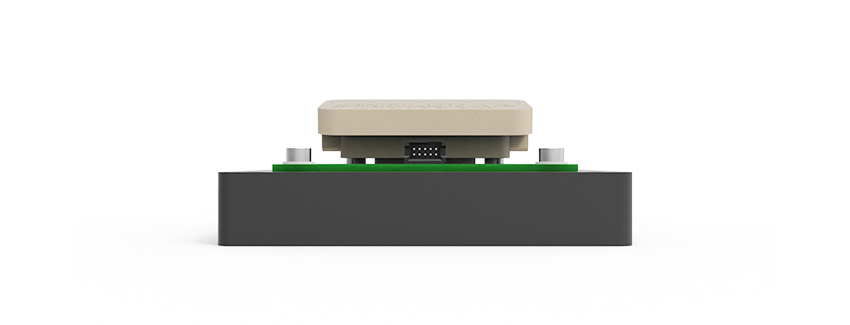

YED900 FPC/FFC Test Socket

Features

  • Reliable FPC/FFC testing
  • Integrated flex foil and pin protection
  • Any shape of flex foil testable

Advantages

  • Semi-Customized FPC/FFC test socket is used for any test purpose of flexible foils and attached application
  • By using probe pins, the damage on the foil pad is minimized but ensures a proven contact
  • Contact the application from top or bottom
  • Any shape or FFC or FPC can be tested

Specifications

General Specification
  • Mating Cycles
    50,000
  • Operating Temperature Range
    20 °C – 85 °C
Interface Specification
  • Pitch
    0.3
  • Pin Count / Numbers of pins
    100
