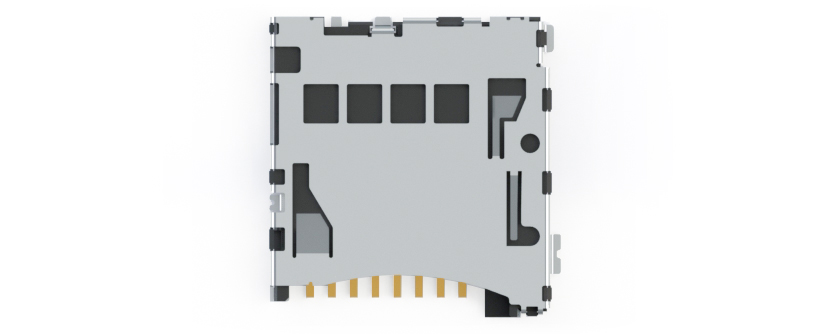

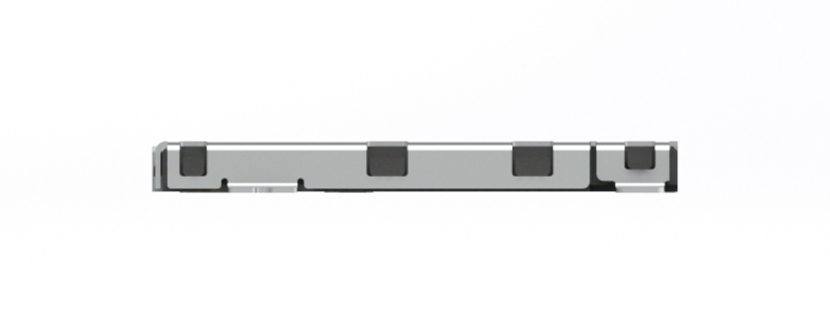

Micro SD Card Connector - push/push type - special card fly out brake

Features

  • PJS008-2120-0
  • Top mount version
  • With additional card fly out brakes
  • Witch card detection switch
  • Card mis insertion prevention design

Advantages

  • Various removal/unlocking techniques such as manual, push/push or push/lock
  • Mounting version for top and bottom of the PCB

Specifications

General Specification
  • Mating Cycles
    10,000
  • Operating Temperature Range
    -25 °C – 85 °C
  • Plating type, technology and coating thickness
    Copper Alloy, Ni-Au
  • Packaging
    Tape and reel
  • Product Compliance
    Reach, RoHS
Electrical Specification
  • (Initial) Contact Resistance
    100 Milliohm at 1
  • Insulation Resistance
    500 Megaohm at 500
  • Voltage Rating
    50 V AC rms
