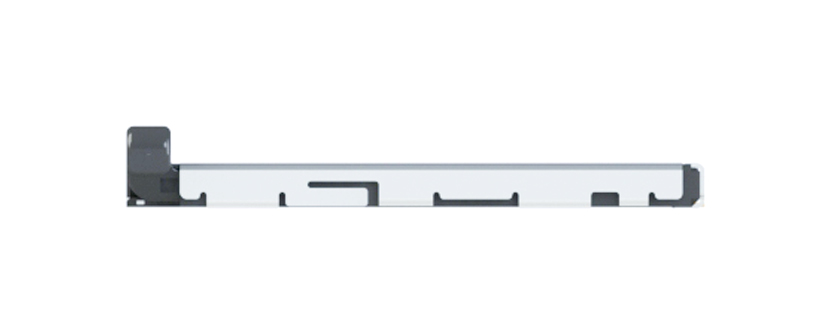

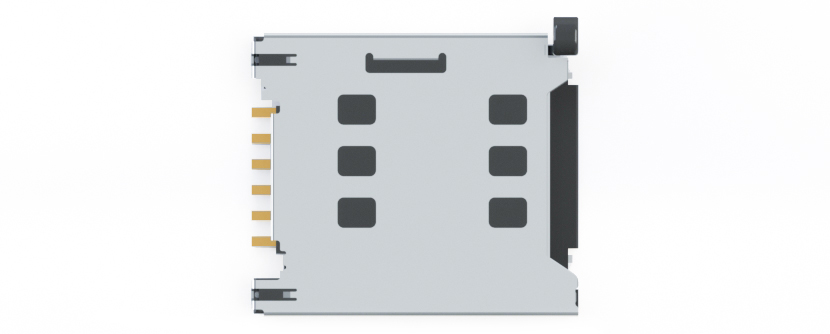

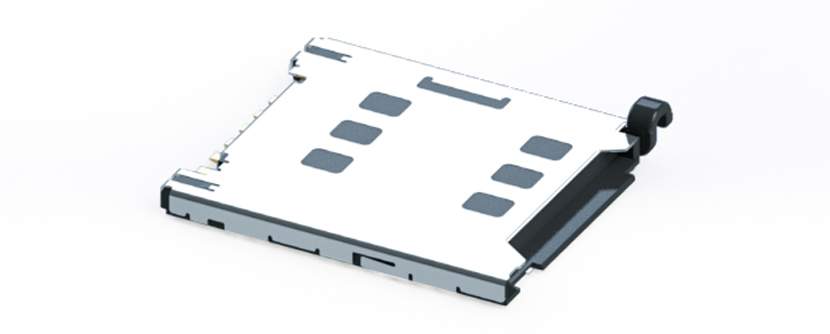

Micro SIM Card Connector - pull eject type

Features

  • FUS006-8500-0
  • Top mount version
  • Card extraction by pulling the lever
  • Ultra low profile design with 1,34mm height
  • EMI prevention design with 6 integrated ground contacts

Advantages

  • Yamaichi Electronics offers the right SIM card connector for all common card formats
  • Various unlocking techniques such as push/pull or tray type
  • Mounting version for top and bottom of the PCB

Specifications

General Specification
  • Mating Cycles
    5,000
  • Operating Temperature Range
    -25 °C – 85 °C
  • Plating type, technology and coating thickness
    Contact : Copper Alloy, Ni-Au
  • Packaging
    Tape and reel
  • Product Compliance
    Reach, RoHS
Electrical Specification
  • (Initial) Contact Resistance
    100 Milliohm at 1 mA
  • Insulation Resistance
    500 Megaohm at 500
  • (Dieletric) Withstanding Voltage
    500 pin to shield / ground for 1 minute pin to pin
  • Voltage Rating
    5 V AC rms
