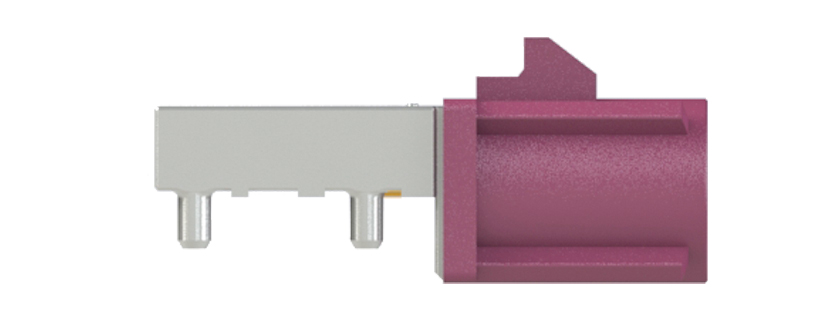

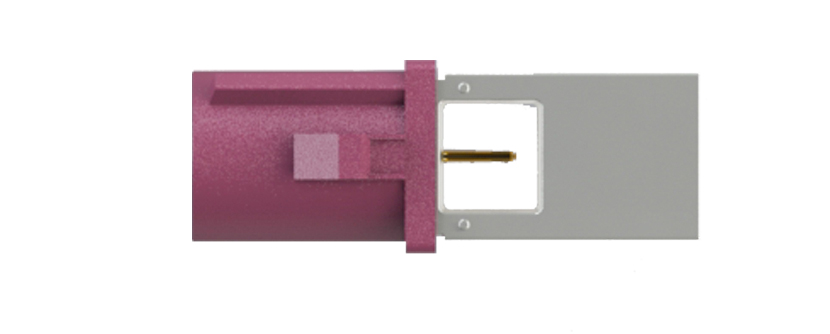

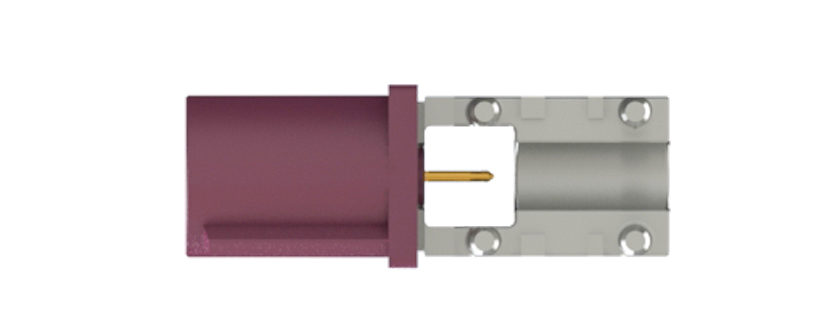

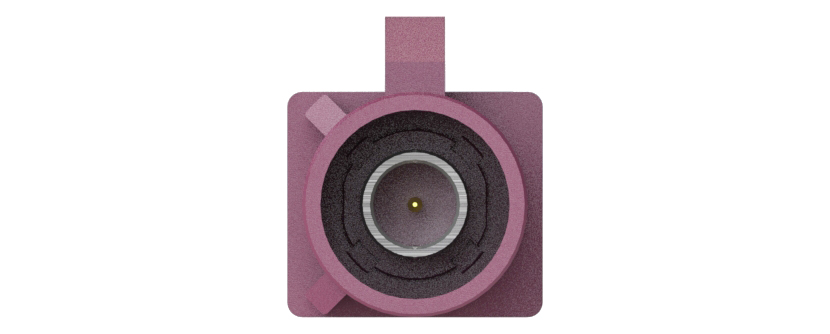

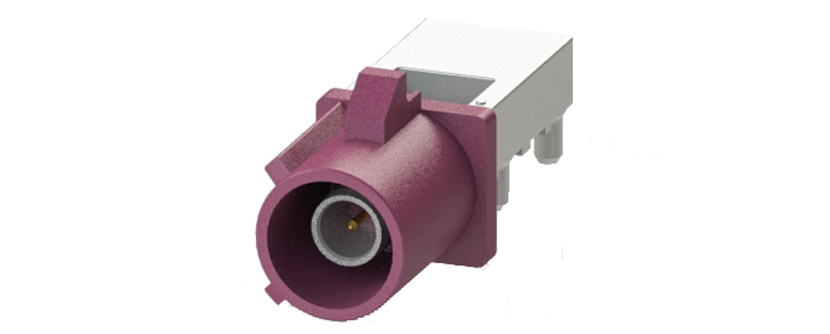

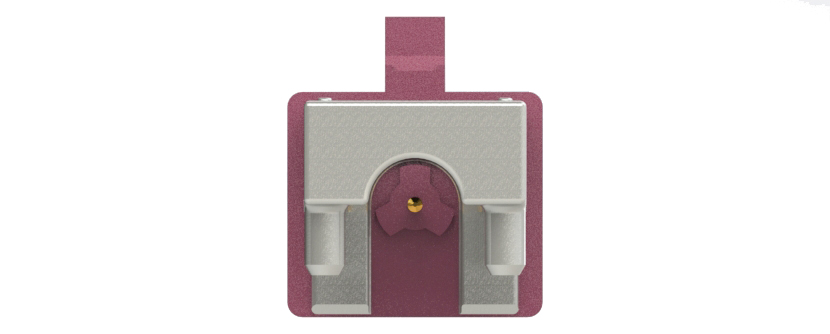

Fakra - HF106 - Plug-90°- Coding D

Features

  • HF106P-0001-0D-VE
  • Fakra Connector Series according to DIN ISO 20860 and USCAR
  • Mechanical and colour coding, coding D Bordeaux
  • SMT version
  • Automotive certified
  • Version also with locking nose down available

Advantages

  • Fakra developed and tested for Automotive applications
  • Die-cast type
  • According to DIN ISO 20860 & USCAR 18 &18
  • Colour and mechanical coding
  • Tape and reel packaging

Specifications

General Specification
  • Mating Cycles
    25
  • Operating Temperature Range
    -40 °C – 105 °C
  • Plating type, technology and coating thickness
    Outer Contact: (ZDC) Sn over Ni
    Centre Contact: Au over Ni
  • Packaging
    Tape and reel
  • Coding
    D
  • Product Compliance
    Reach, RoHS
Electrical Specification
  • (Initial) Contact Resistance
    5 Milliohm
  • Insulation Resistance
    1000 Megaohm at 100
  • (Dieletric) Withstanding Voltage
    750 V AC for 1 minute
  • Current Rating
    1 A 1 minute
  • Voltage Rating
    335 V AC
Interface Specification
  • Pin Count / Numbers of pins
    1
