- HF108P-0001-0D-VE
- HSD connector with differential impedance of 100 Ohm
- High frequency characteristic up to 2 GHz
- Power contacts up to 5A
- Mechanical and colour coding, coding B Bordeaux
- THR type (Pin in paste)
- Automotive certified
EN

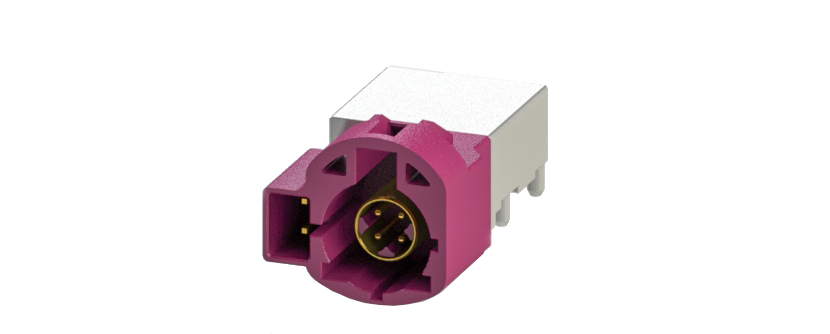

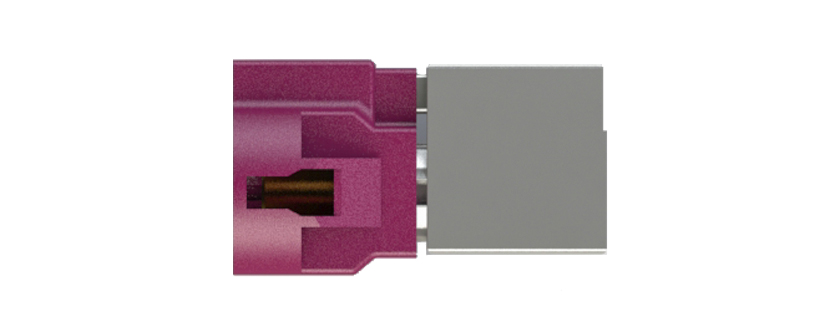

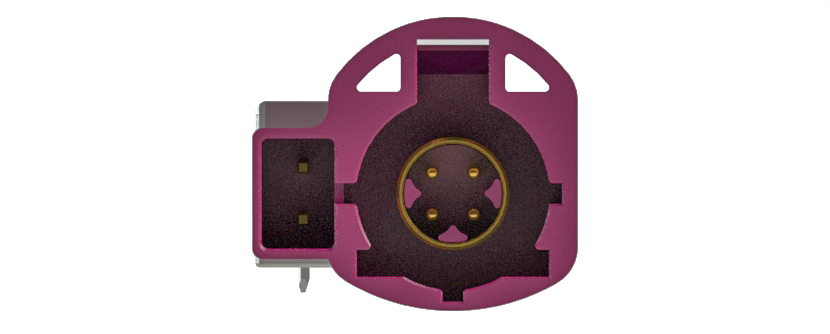

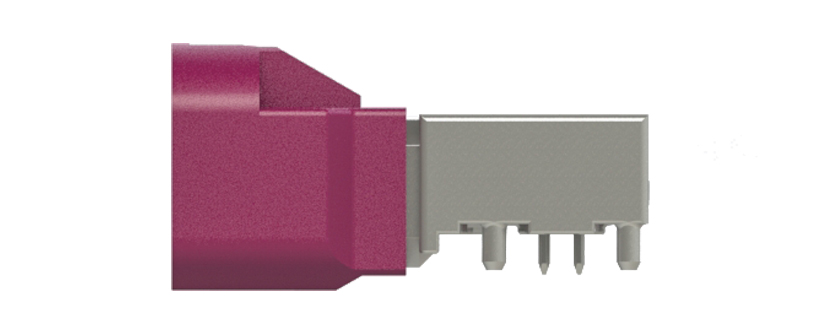

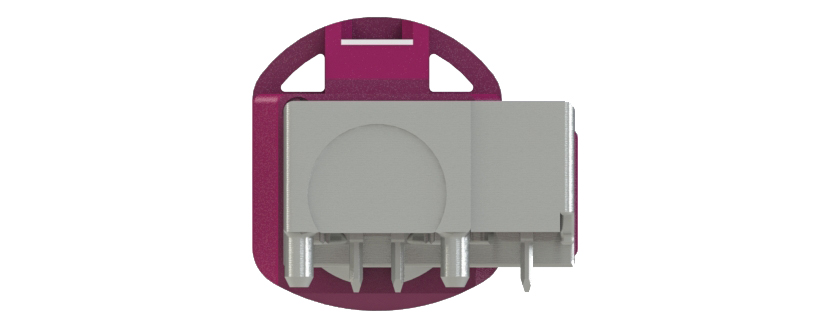

HSD-HF108-Plug-90°- Coding D - with 2 power contacts
Features
Specifications
General Specification
- Mating Cycles
25 - Operating Temperature Range
-40 °C – 105 °C - Plating type, technology and coating thickness
Power Contact: Sn over Ni
Outer Contact: Sn over Ni
Centre Contact: Au over Ni - Packaging
Tape and reel - Product Compliance
Reach, RoHS
Electrical Specification
- (Initial) Contact Resistance
10 Milliohm - Insulation Resistance
1000 Megaohm at 100 - (Dieletric) Withstanding Voltage
500 V for 1 minute - Current Rating
1,5 A 1 minute - Voltage Rating
100 V AC
Interface Specification
- Pin Count / Numbers of pins
6
