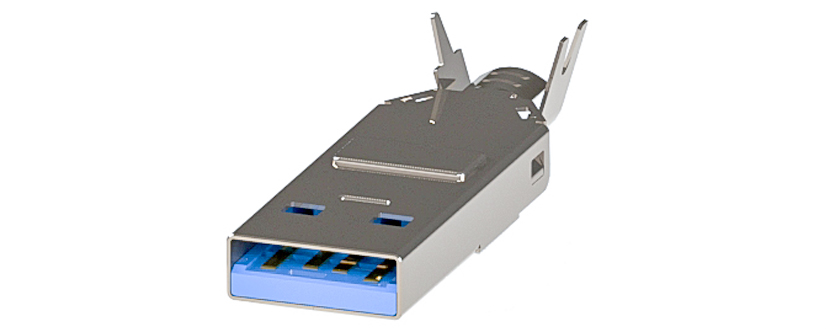

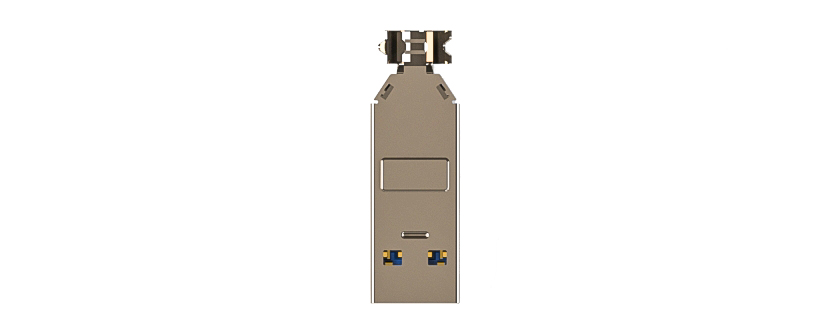

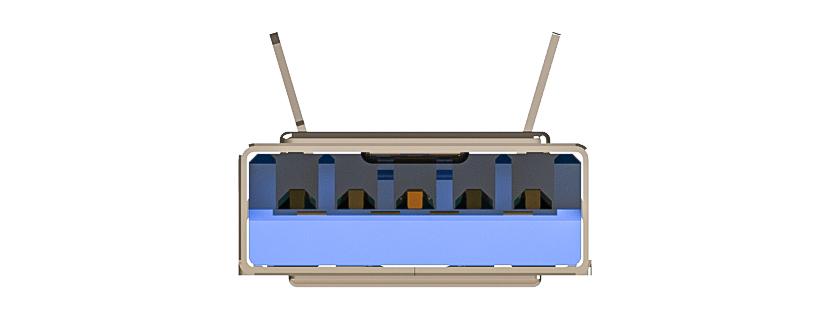

USB 3.0 - A-Type - Male - Solder Plug

Features

  • USB-3.0-9A-P-BL-BU-NEW
  • Standardized according to Universal Serial Bus (USB) specification

Advantages

  • Worldwide standard, installed in almost every PC and other devices
  • Downward compatibility with older transmission standards
  • Integrated power and data transmission
  • Immediately ready for use due to hot-plug principle (even during operation)
  • No active installation necessary

Specifications

General Specification
  • Operating Temperature Range
    -40 °C – 85 °C
  • Plating type, technology and coating thickness
    Contact Plating: Selective 15µ´´ Gold Plated
  • Packaging
    Bulk
  • Product Compliance
    Reach, RoHS
Electrical Specification
  • (Initial) Contact Resistance
    30 Milliohm
  • Insulation Resistance
    1000 Megaohm
  • (Dieletric) Withstanding Voltage
    100 V AC for 1 minute
  • Current Rating
    1,5 A 1 minute
  • Voltage Rating
    30 V AC
Interface Specification
  • Pin Count / Numbers of pins
    9
