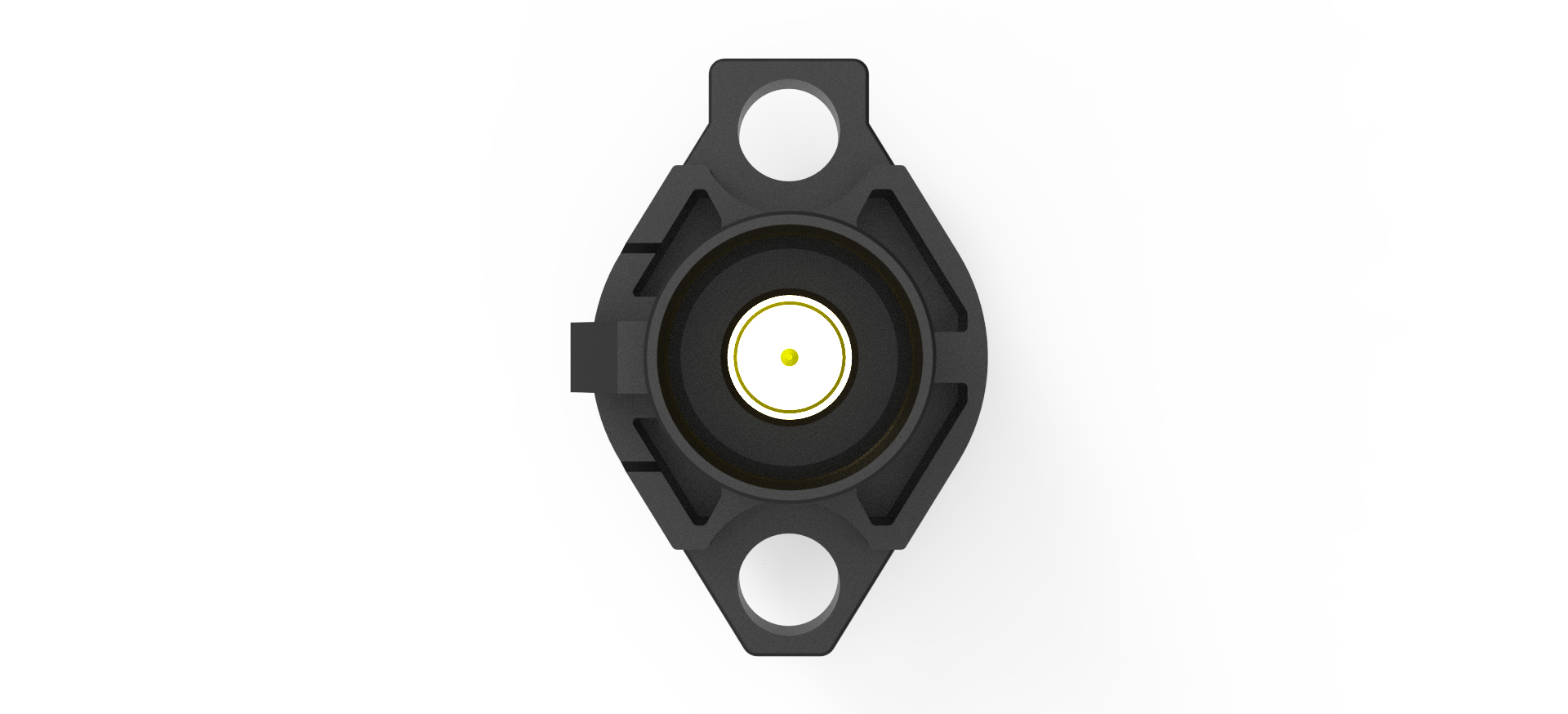

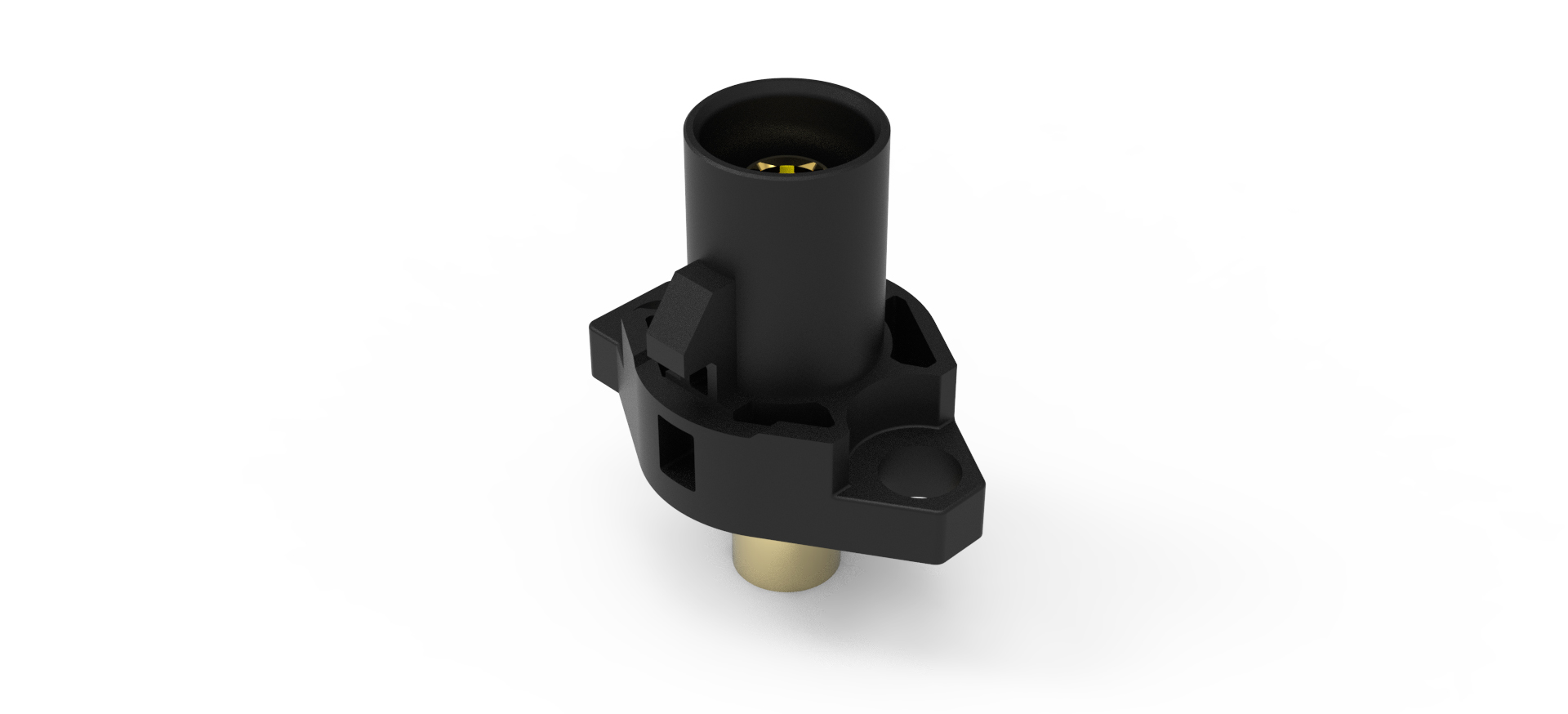

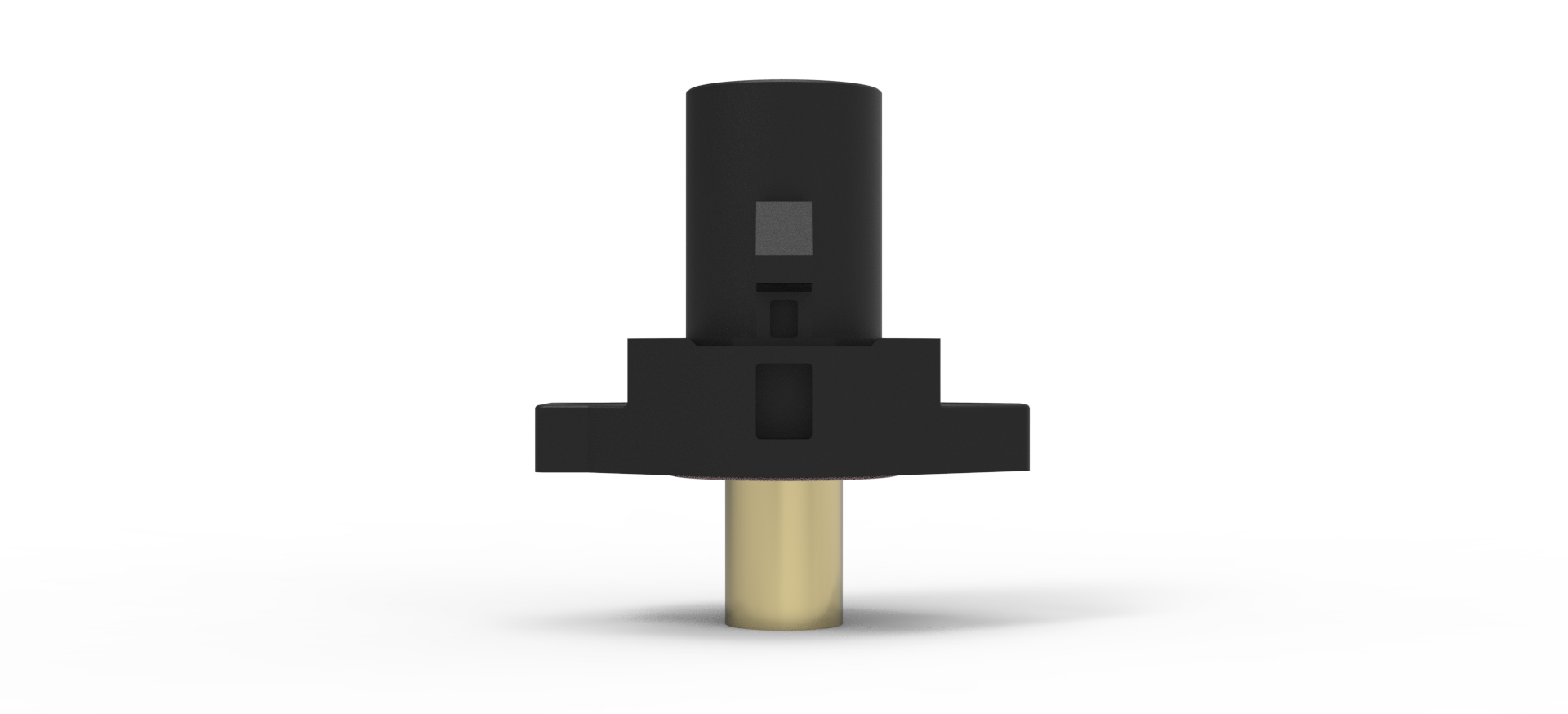

- HC001P-1001-0-VE
- Camera connector plug side
- Mateable with standard Fakra cable connector Z-Coding
- Other Codings available on request
- In mated condition IP69K protection
- Impedance controlled at 50mOhm
EN
Y-CMC Camera Connector Plug
Features
Advantages
- Space-saving design
- Tolerance compensation
- IP69K - splash water protected
- High-speed function
Specifications
General Specification
- Mating Cycles
25 - Operating Temperature Range
-40 °C – 105 °C - Packaging
Tray
Electrical Specification
- (Initial) Contact Resistance
50 Milliohm at 10 mA - Insulation Resistance
1000 Megaohm at 500 - (Dieletric) Withstanding Voltage
750 V AC rms for 1 minute - Current Rating
1 A 1 minute - Voltage Rating
335 V AC rms
