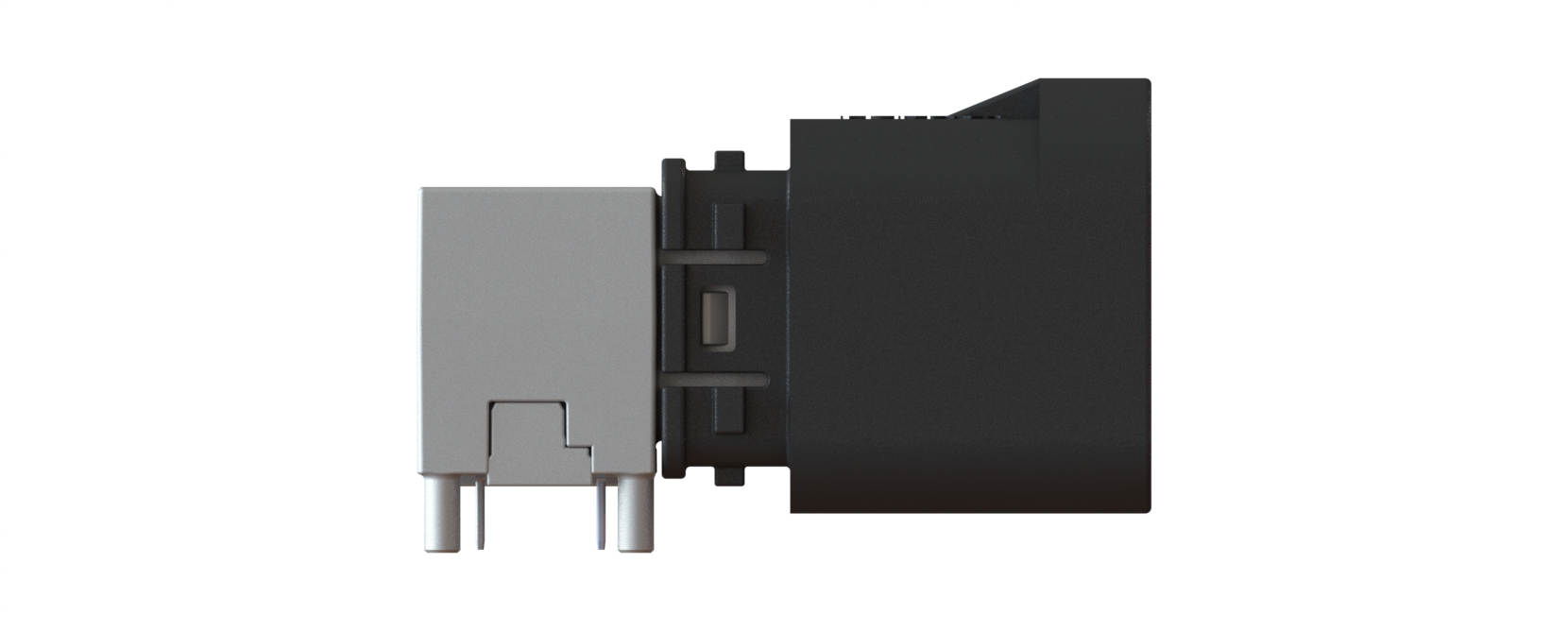

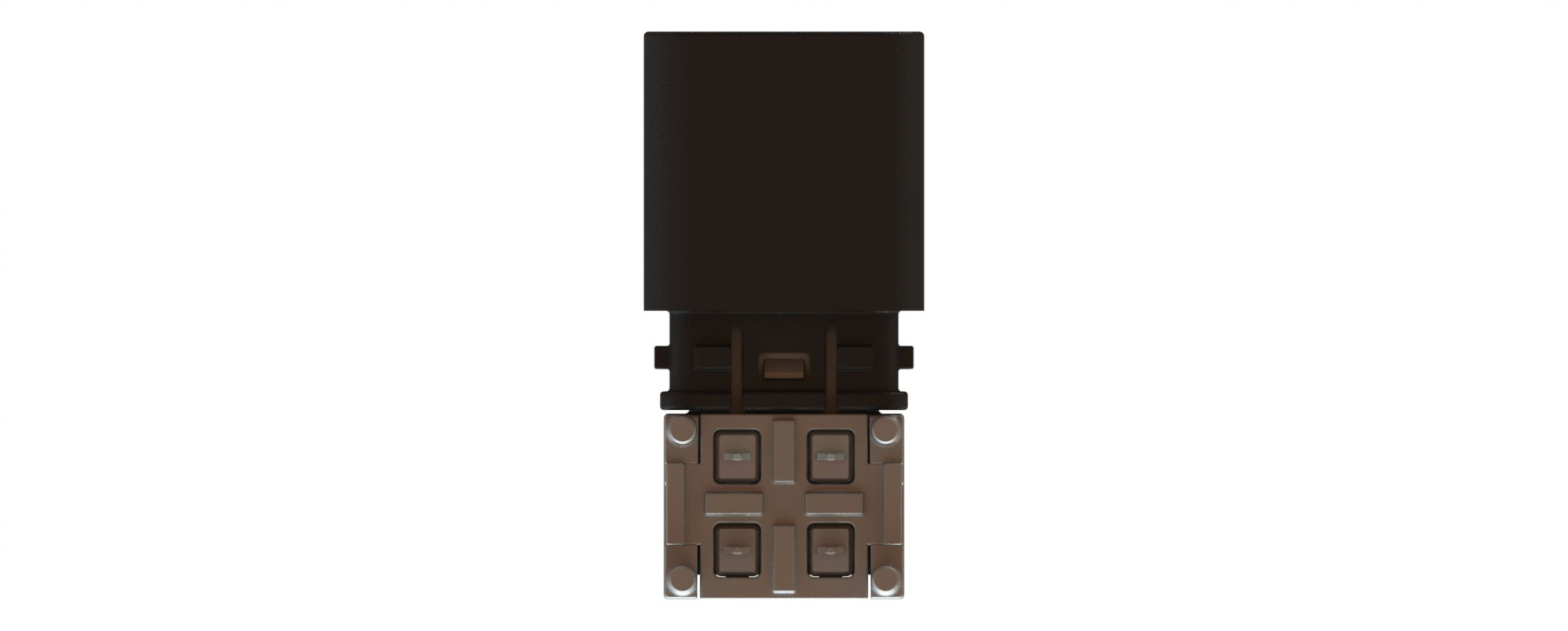

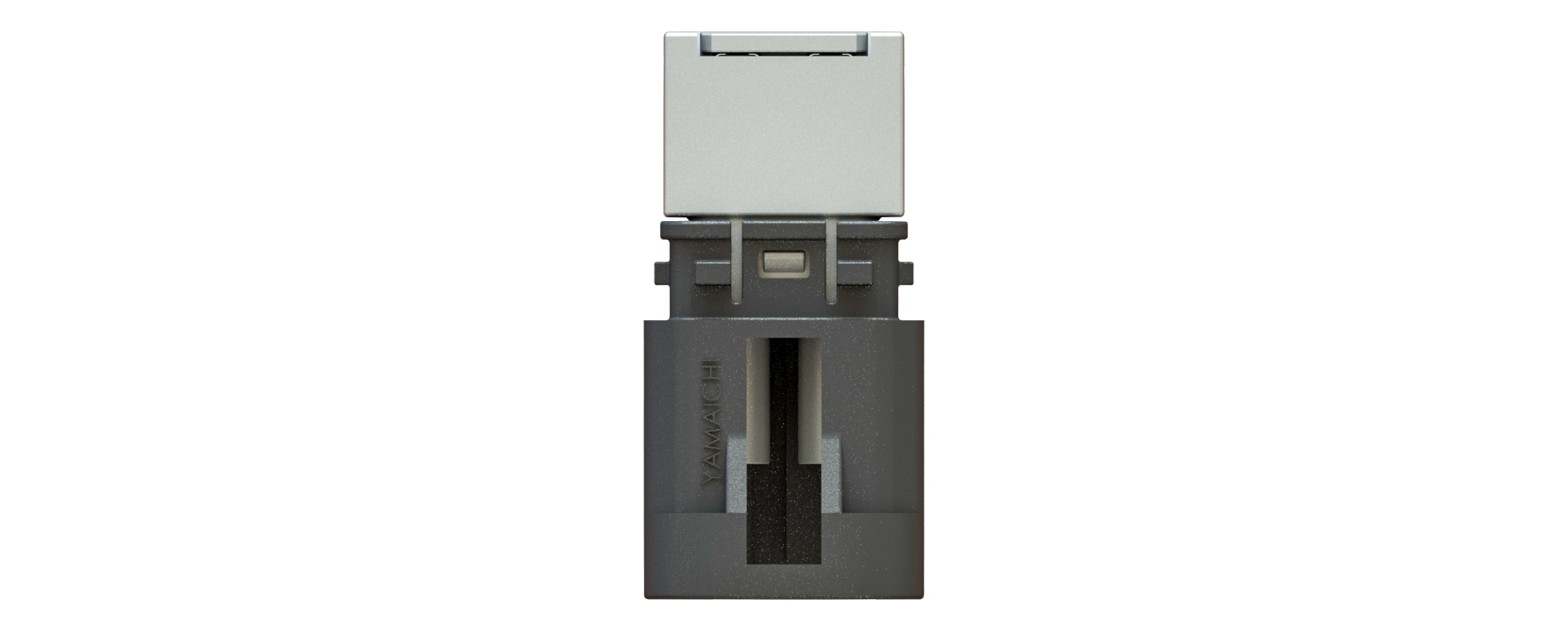

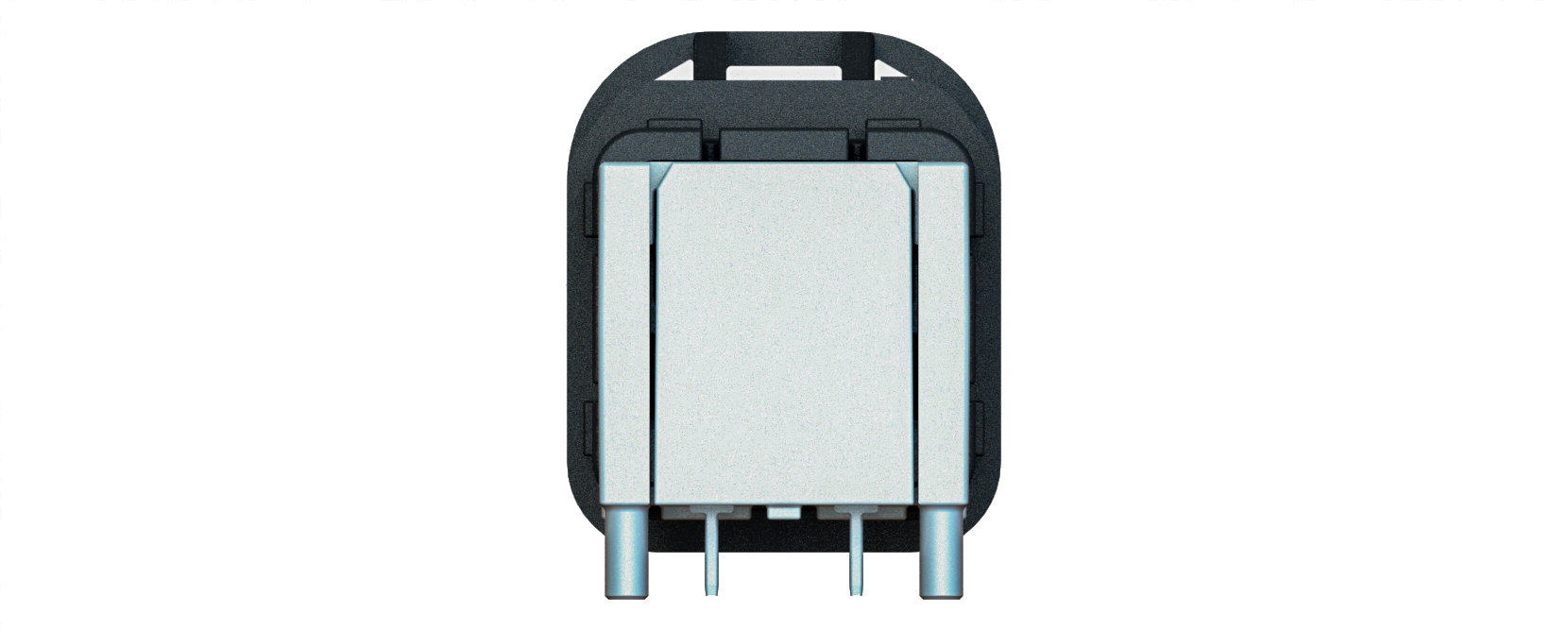

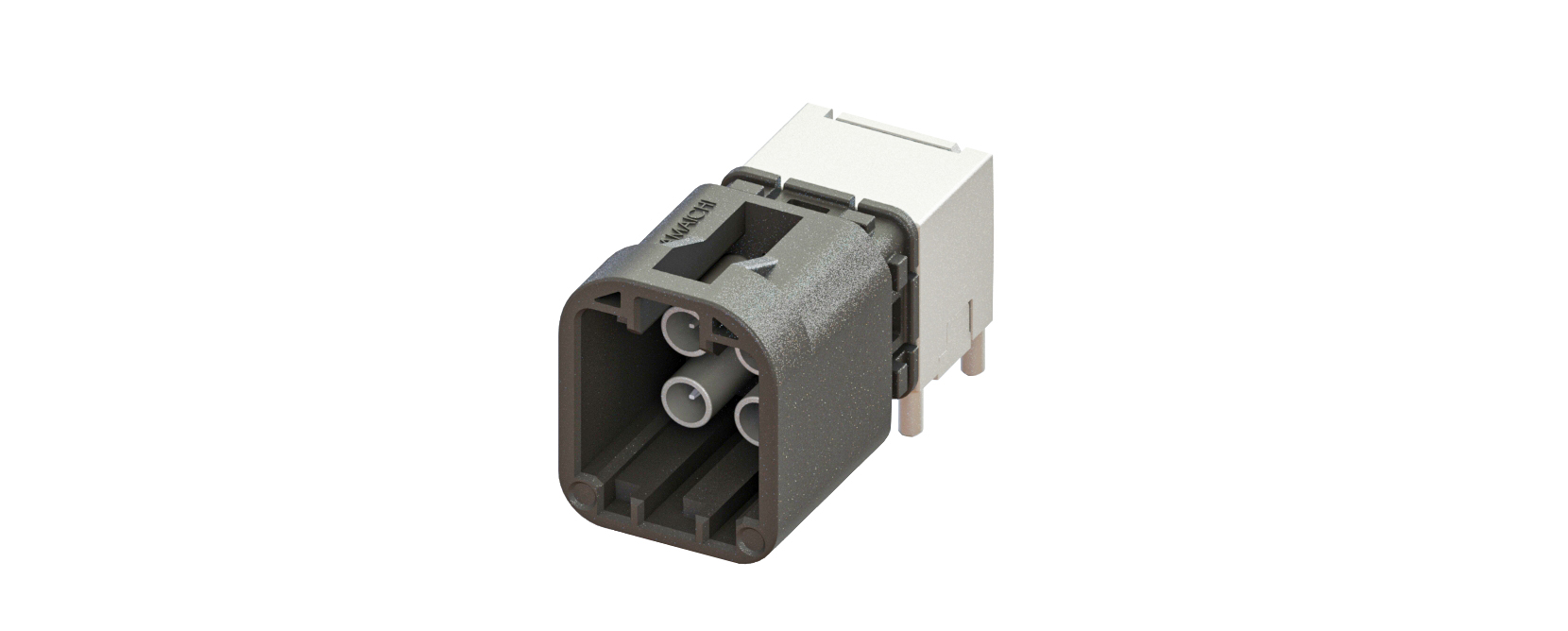

Mini-Fakra – Y-MFC – Quad Type – Coding A

Features

  • Y-MFC-4PT-A-VL-REDC
  • Y-MFC Mini-Fakra Series
  • Quad-Version
  • Coding A - mechanical and colour coding
  • Save and weight saving Design

Advantages

  • Developed and tested for automotive applications
  • High-speed performance
  • Space- and weight-saving design
  • Two different designs of the insulator available - thus perfect adaptation in the housing is possible
  • Different colour and mechanical codings available
  • The coding position can be supplied in standard / 90° / 180° and 270° versions on customer request
  • Other Y-MFC versions (e.g. single or double variant) on request

Specifications

General Specification
  • Mating Cycles
    25
  • Operating Temperature Range
    -40 °C – 105 °C
  • Plating type, technology and coating thickness
    Contact's Plating:
    - Mating side: min 2µm Ag over Ni
    - Soldering side: min 2µm Sn over Ni
    Die-cast's plating:
    - Frontal die-cast: Cu15-20µm/Ni3-5µm/Sn2-4µm
    - Rear die cast: Cu13-18µm/Ni3-5µm/Sn2-4µm
  • Packaging
    Tape & Reel
  • Coding
    5
  • Contact Type
    Solder
Electrical Specification
  • (Initial) Contact Resistance
    5 Milliohm
  • Insulation Resistance
    1000 Megaohm
  • (Dieletric) Withstanding Voltage
    710 V DC for 1 minute
  • Current Rating
    1 A 1 minute
  • Voltage Rating
    60 V DC
Interface Specification
  • Soldering Technology
    Compatible to Reflow and Wave soldering
  • In case of THR or SMD: according to
    IPC/JEDEC J-STD-020
  • Pitch
    4
  • Pin Count / Numbers of pins
    4
  • Contact Type
    Solder
