- Y-QLS-52P-LL-THR9-P-EDC
- Y-QUAD Series available for Wave and Reflow Soldering
- Different positions of ground contacts available
- Different number of contacts on request

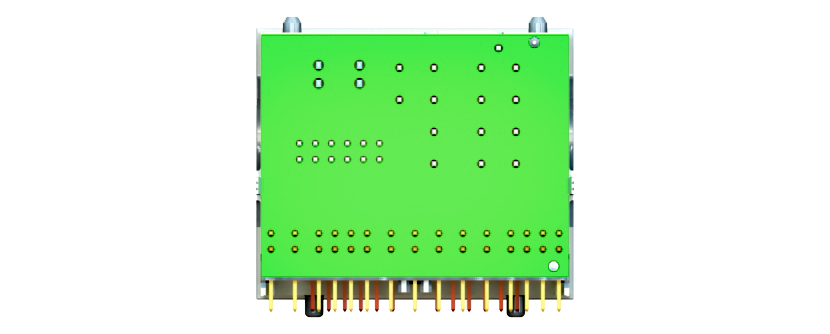

- With Backside PCB
- Automotive Certified
EN

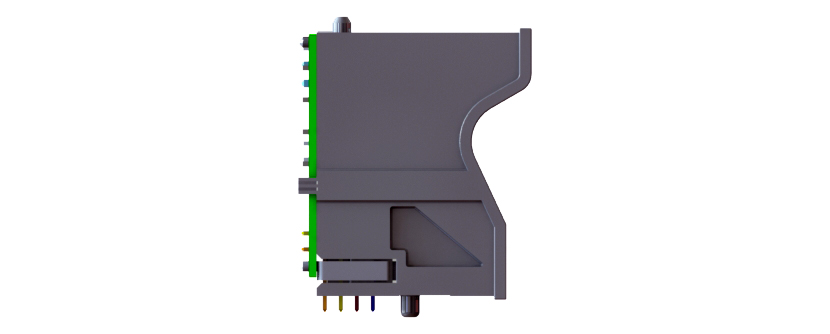

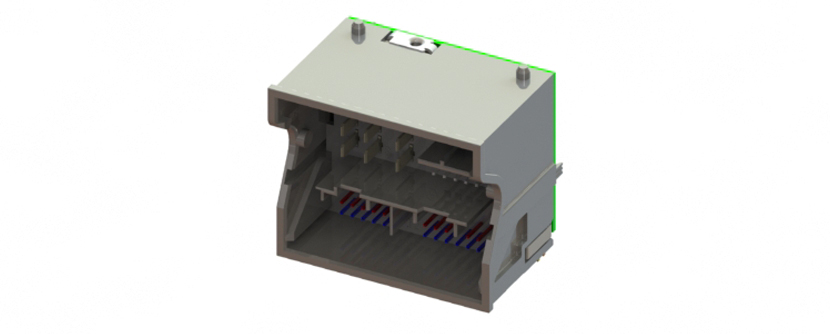

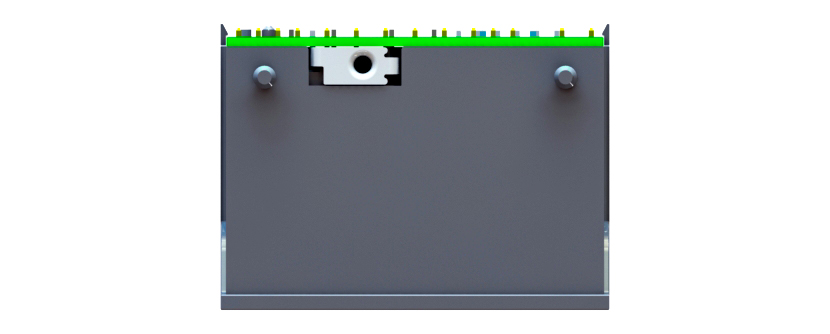

Quadlock Connector - Y-QUAD - 90° - 52 pins
Features
Advantages
- Space saving design in regards to connector size and PCB layout
- Other pin counts are available on request
- Wave soldering or Reflow soldering version (Pin&Paste)
- RoHS2011/65/EU
Specifications
General Specification
- Operating Temperature Range
-40 °C – 85 °C - Plating type, technology and coating thickness
Contacts: Copper Alloy
Plating: Tin - Packaging
Tube - Product Compliance
Reach, RoHS
Interface Specification
- Pin Count / Numbers of pins
52
