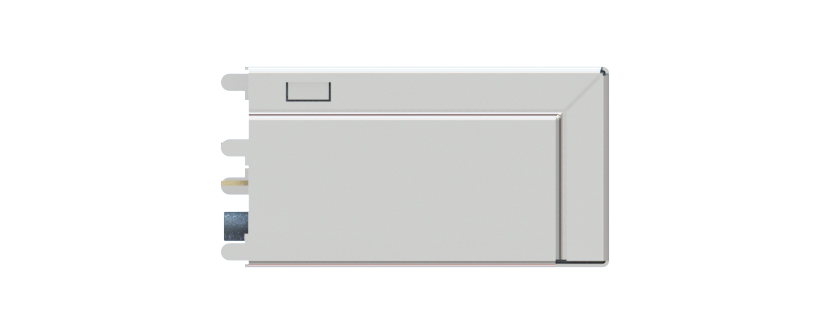

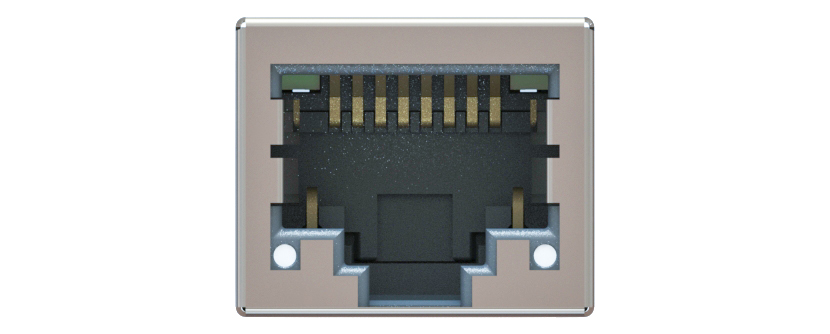

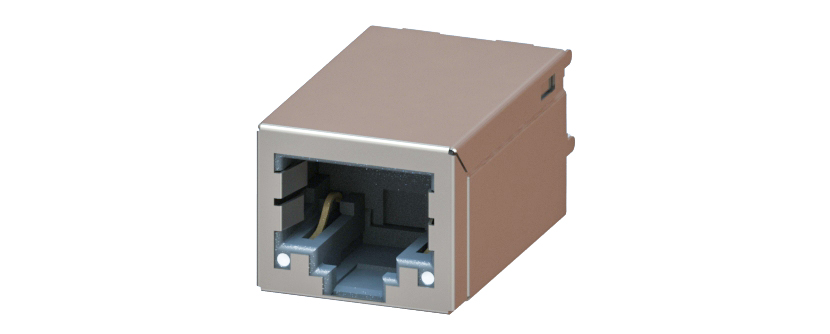

- Y-ConJack-51
- RJ45 Jack 180° 100Mbit
- With magnetics, light pipes and additional power contacts for power supply
- For use with all Y-Con plugs
EN
RJ45 - Y-CON - Jack - 180° - Magnetics - 2 Power Contacts - Lightpipes - 100MBit
Features
Advantages
- Our jack portfolio is in different variants available:
- Max. temperature range from -40°C up to 120°C
- Optional additional power contacts up to 3,1 A @ 70°C
- Optional magnetics
- Optional light pipes for reflow soldering
- Optional EMI shield springs
- Transmission rates up to 10GBit
Specifications
General Specification
- Mating Cycles
1,500 - Operating Temperature Range
-40 °C – 120 °C - Plating type, technology and coating thickness
Shield:
nickel plated 60µ"min, t=0,25
In soldering area: Sn plating (min 80μ") over nickel
(min 50μ")
Contacts:
In contact area: gold plating 30µ" min over nickel 50µ" min
In soldering area: tin plating 80µ"min over nickel 50µ" min - Packaging
Tray - POE
no - Product Compliance
Reach, RoHS
Electrical Specification
- (Initial) Contact Resistance
20 Milliohm - Insulation Resistance
500 Megaohm - (Dieletric) Withstanding Voltage
1000 VDC or VAC peak for 1 minute pin to pin - Current Rating
2,1 A 1 minute pin to shield/ground
