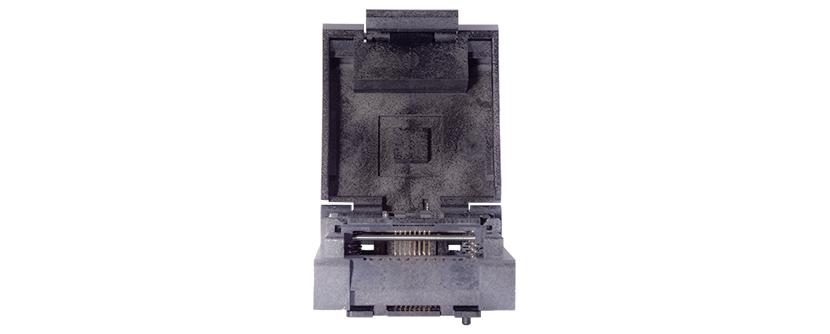

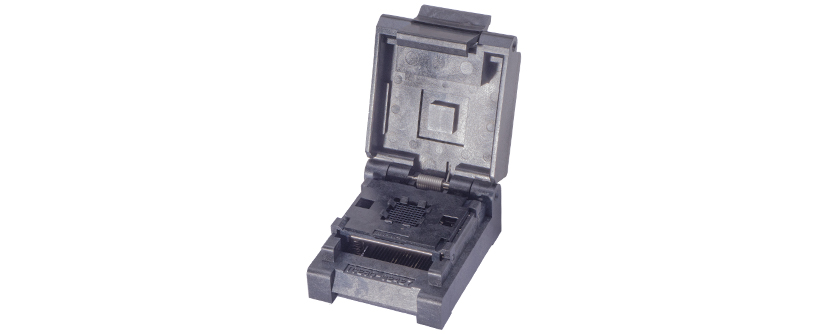

IC280-Series - Clamshell

Features

  • Clamshell THT socket solution for different BGA and LGA packages from 0.65mm up to 1.00mm pitch
  • Available in 3 pitch sizes and various depopulation versions
  • V-shape contact structure prevents any damage of coplanarity of the ball contacts

Advantages

  • Compact easy handling structure
  • Suitable for different kind of BGA and LGA packages
  • Suitable for manual loading operation

Specifications

General Specification
  • Mating Cycles
    10,000
  • Operating Temperature Range
    -40 °C – 150 °C
Electrical Specification
  • (Initial) Contact Resistance
    30 Milliohm
  • Insulation Resistance
    1000 Megaohm
  • (Dieletric) Withstanding Voltage
    500 V AC
  • Current Rating
    1 A
Interface Specification
  • Pitch
    0.65
  • Pin Count / Numbers of pins
    750
