- Open top THT socket solution suitable for Dual Inline packages (DIP)
- Pitch 1.778 mm pitch standard
- Variable socket outline according to package dimensions
EN

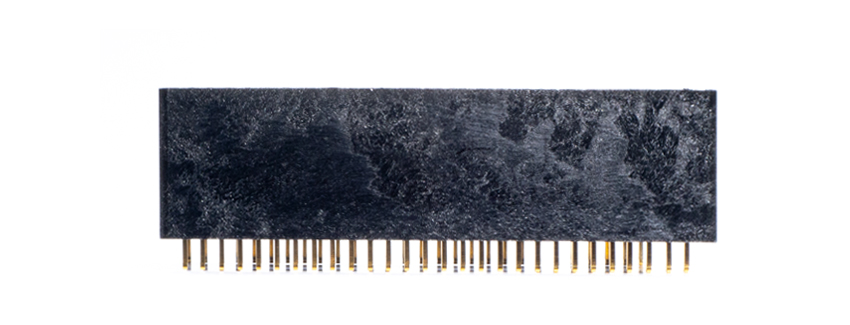

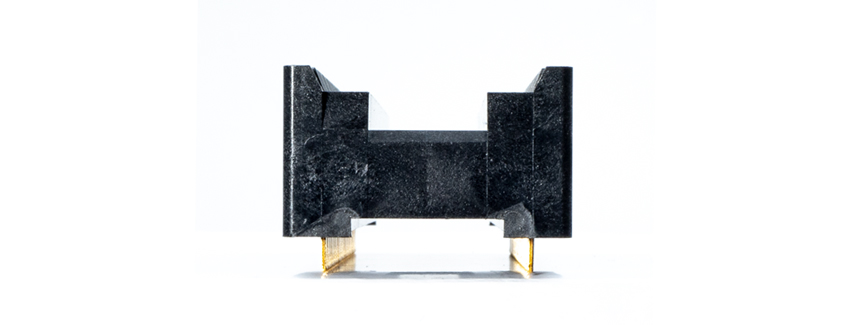

IC121-Series - Open Top
Features
Advantages
- Open top solution suitable either for manual or automatic loading
- Outstanding durability with low insertion withdrawal force
- Shrink pitch (1.778 mm) sockets for high-density mounting
- Dual wipe contacts to ensure high reliability
- Two terminal lengths (3mm / 5mm) available
- The 5mm type can be used as a piggy-back socket
Specifications
General Specification
- Mating Cycles
10,000 - Operating Temperature Range
-40 °C – 150 °C
Electrical Specification
- (Initial) Contact Resistance
20 Milliohm - Insulation Resistance
1000 Megaohm - (Dieletric) Withstanding Voltage
700 V AC - Current Rating
1 A
Interface Specification
- Pitch
1 - Pin Count / Numbers of pins
64
